Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Anti-roll bar to connecting link (conventional)	Item 3: Hexagon-head bolt, M12x1.5 X 50/always replace bolts following removal!	Initial tightening	70 Nm (52 ftlb.)

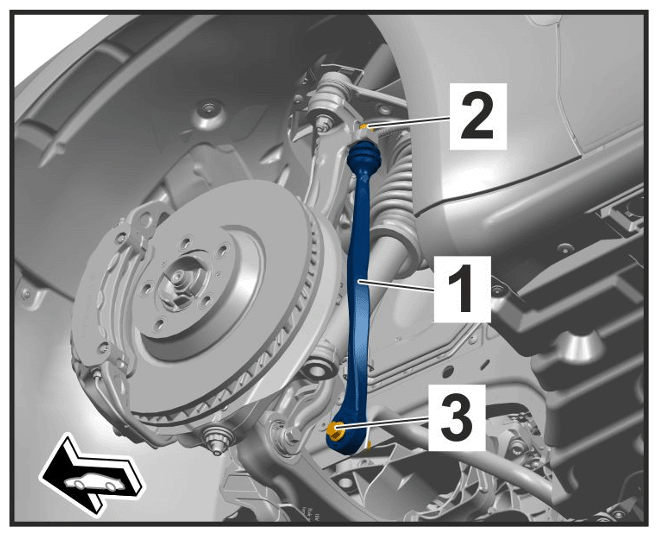

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for connecting link for anti-roll bar
Anti-roll bar to connecting link (conventional)	Item 3: Hexagon-head bolt, M12x1.5 X 50/always replace bolts following removal!	Final tightening	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for connecting link for anti-roll bar
Anti-roll bar clamps to anti-roll bar mount	Item 2: Hexagon-head bolt, M10x 32/always replace bolts following removal!	Initial tightening	50 Nm (37 ftlb.)

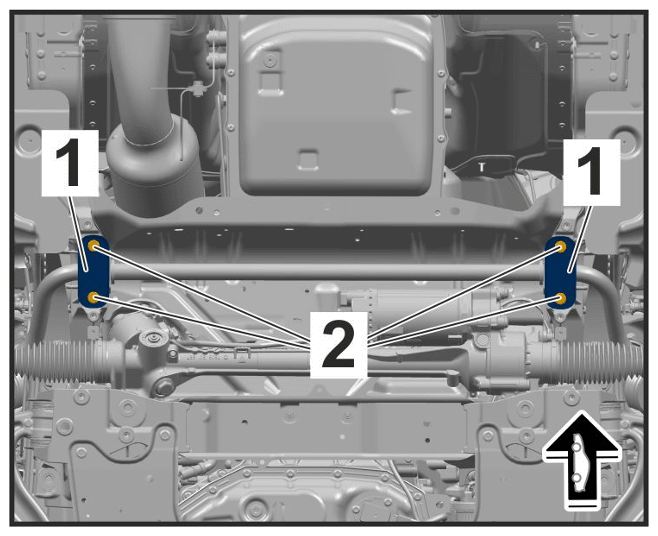

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Anti-roll bar mount
Anti-roll bar clamps to anti-roll bar mount	Item 2: Hexagon-head bolt, M10x 32/always replace bolts following removal!	Final tightening	+ 30°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Anti-roll bar mount
