Removing Front Anti-Roll Bar
WARNING: This page is about a different variant/trim than selected.
- Remove threaded joint -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Mounting for connecting link for anti-roll bar
- Remove anti-roll bar clamps -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

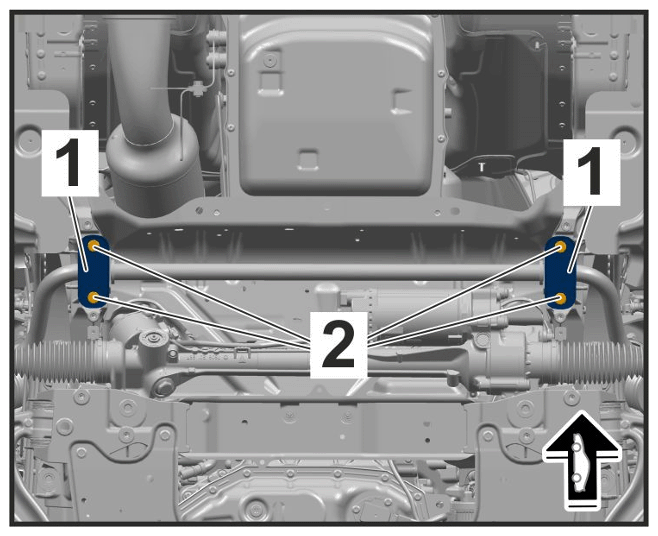

Mounting for anti-roll bar clamps
- 2.1 Unscrew fastening screws -2-
.
- Remove front anti-roll bar by turning it.
