Technical Values

WARNING: This page is about a different variant/trim than selected.

*Location	*Description	*Type	*Basic value
Anti-roll bar to connecting link (PDCC)	Item 3: Hexagon-head bolt, M12 x 1.5 x 60 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	70 Nm (52 ftlb.)

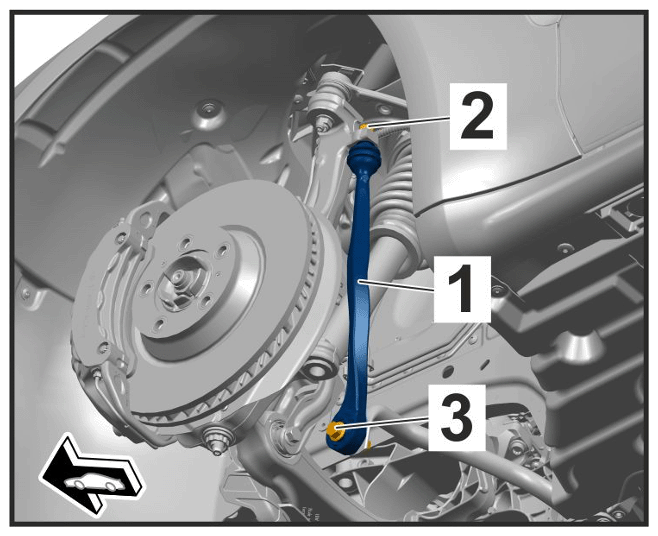

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for connecting link for anti-roll bar
Anti-roll bar to connecting link (PDCC)	Item 3: Hexagon-head bolt, M12 x 1.5 x 60 and hexagon nut/always replace bolts and nuts following removal!	Final tightening	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for connecting link for anti-roll bar
Anti-roll bar clamps to anti-roll bar mount	Item 2: Hexagon-head bolt, M10 x 32/always replace bolts following removal!	Initial tightening	50 Nm (37 ftlb.)

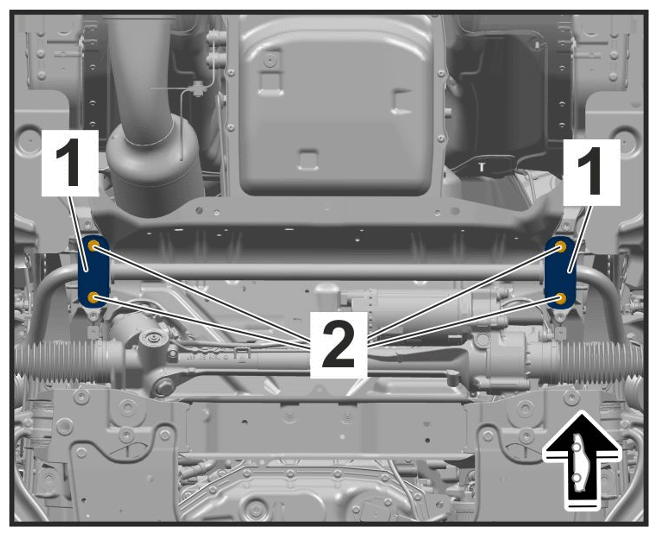

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Anti-roll bar mount
Anti-roll bar clamps to anti-roll bar mount	Item 2: Hexagon-head bolt, M10 x 32/always replace bolts following removal!	Final tightening	+ 30°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Anti-roll bar mount
Ground line to front PDCC (EAWS) control unit	Item 1: Internal hexagon round-head bolt, M5	Tightening torque	5.6 Nm (4 ftlb.)

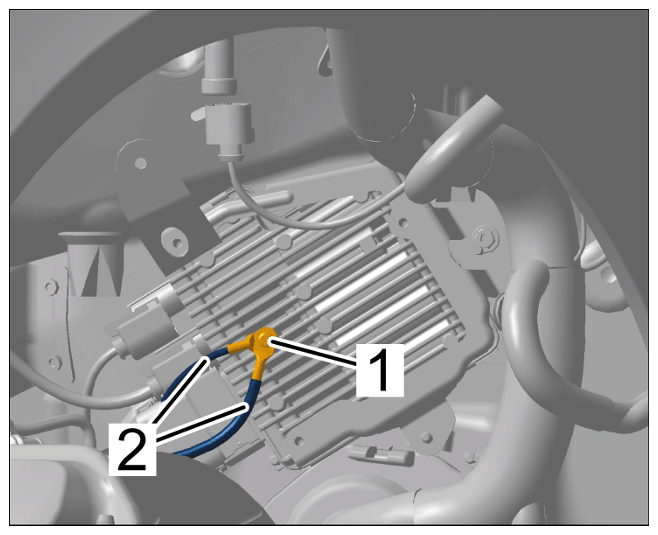

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Disconnecting ground lines
