Removing Front Anti-Roll Bar

WARNING: This page is about a different variant/trim than selected.
  1. Remove wire harness for PDCC -1-  .

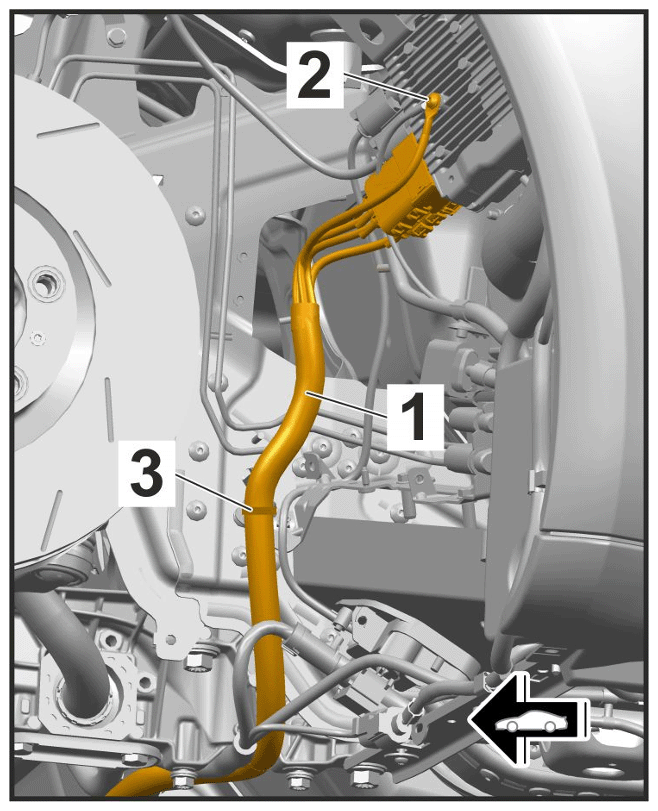

    G15857615Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for PDCC wire harness

    1. 1.1 Unscrew fastening screw for ground line -2-  .
    2. 1.2 Loosen bracket -3-  .
    3. 1.3 Release and disconnect electric plug connections from the PDCC control unit in the sequence -1 to 5-  .

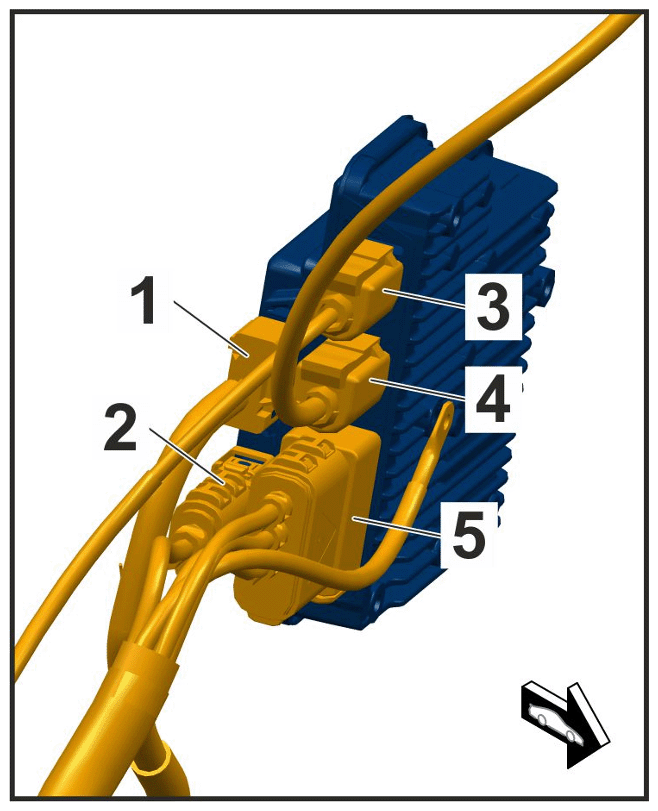

    G15857616Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sequence for disconnecting the electric plug connections

  2. Unscrew fastening screws -3-  for the connecting links -1-  on both sides of the vehicle.

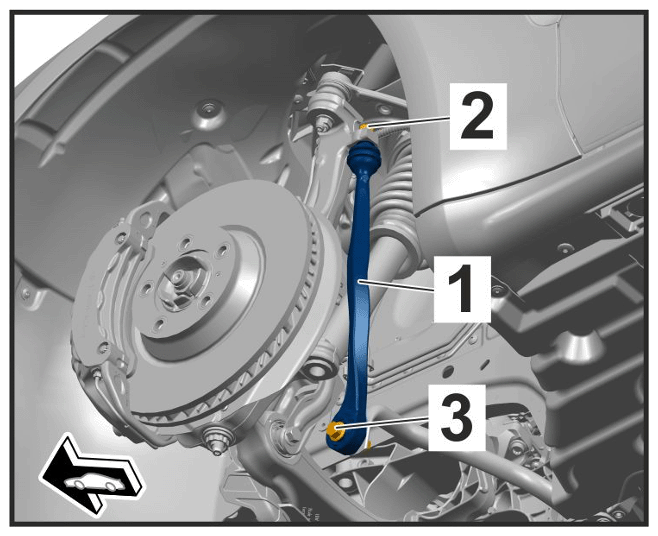

    G15857617Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for connecting link for anti-roll bar

  3. Remove anti-roll bar clamps -1-  .

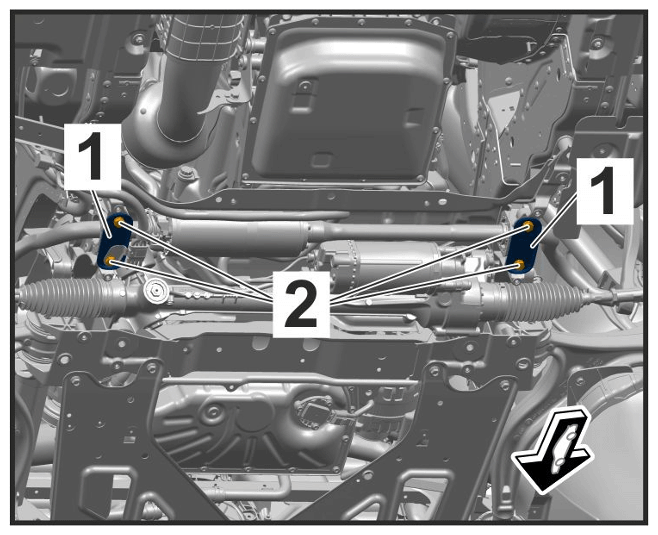

    G15857618Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for anti-roll bar clamps

    1. 3.1 Unscrew fastening screws -2-  .
