Removing Wheel Bearing Housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

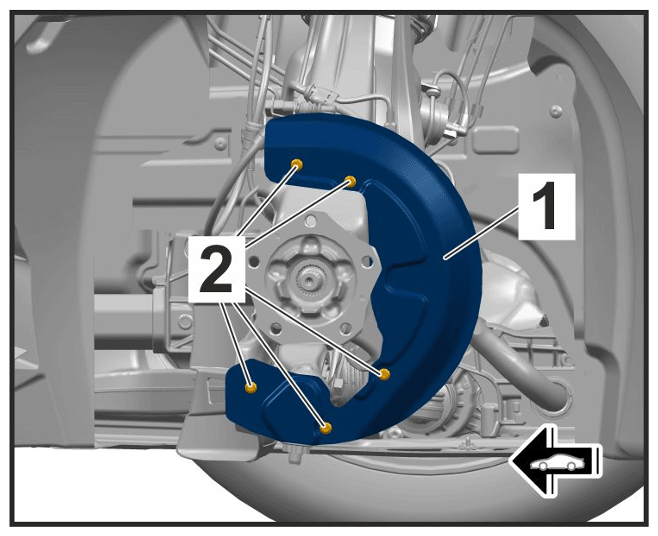

Mounting for brake cover panel

1. 1.1 Unscrew fastening screws -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

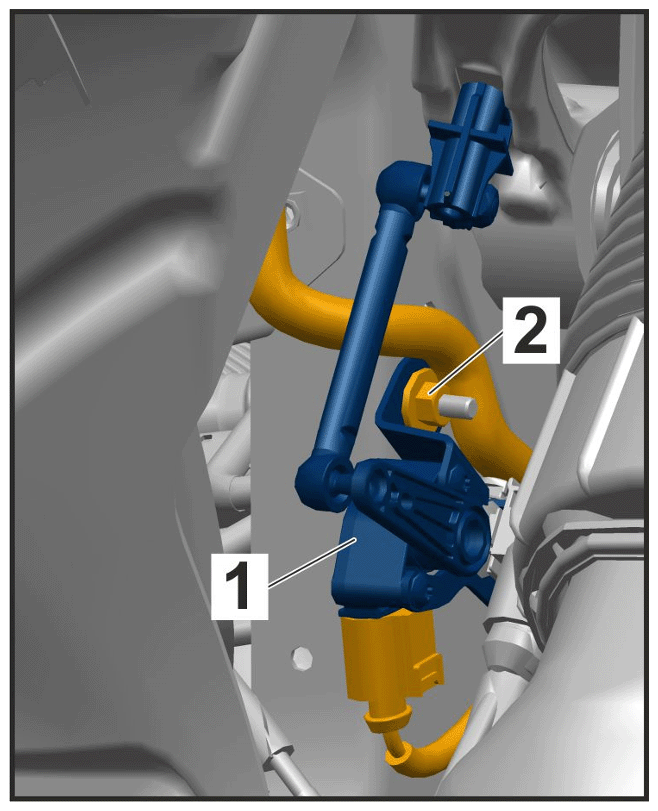

Mounting for front level sensor on body

1. 2.1 Screw off nut -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

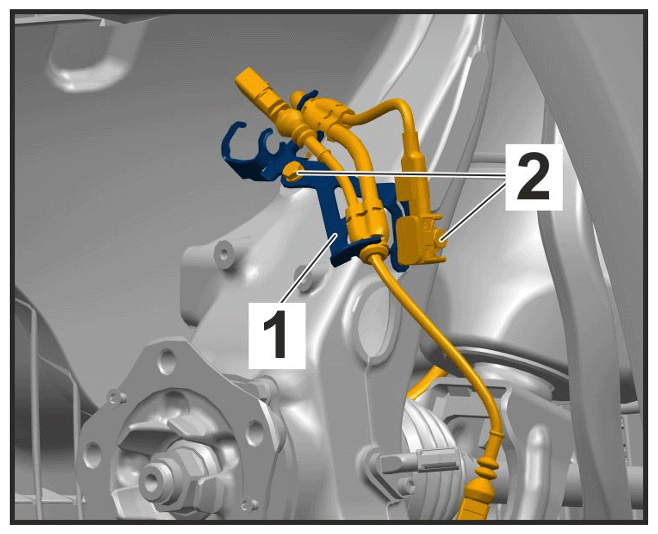

Cable holder mounting

1. 3.1 Unscrew fastening screws -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

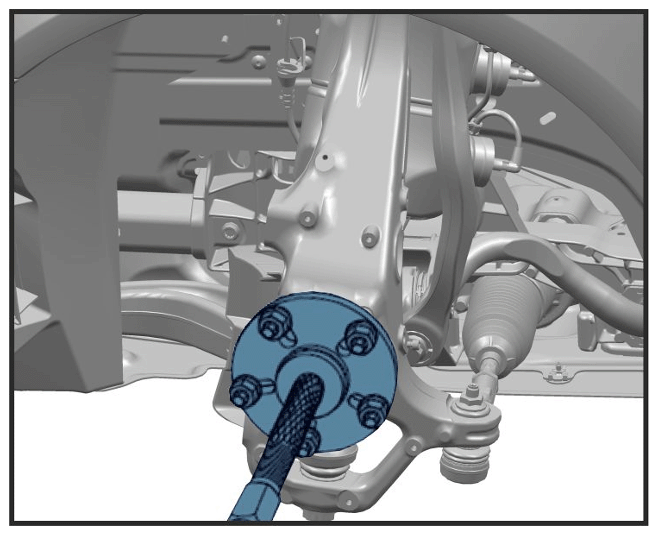

Pressing in drive shaft

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

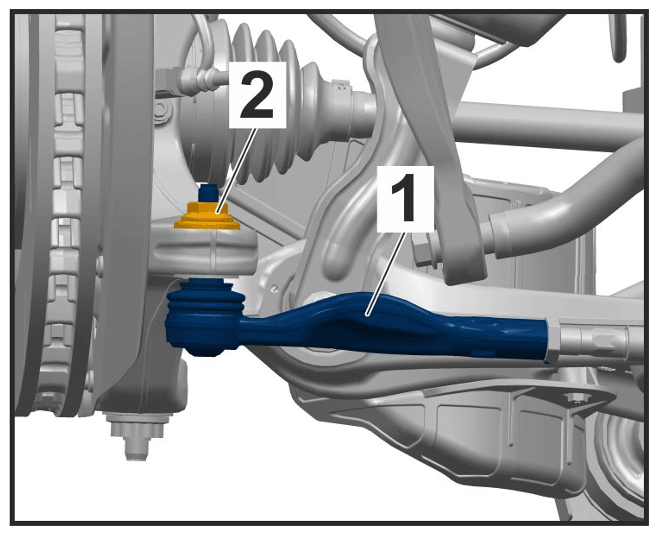

Mounting for tie-rod ball on wheel bearing housing

1. 5.1 Unscrew nut -2-  on joint pin for the tie-rod ball until it is flush with the upper edge of the joint pin.
2. 5.2 Press off joint pin for tie-rod ball using > T10187 - Press-out tool  > Pressing off joint pin

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

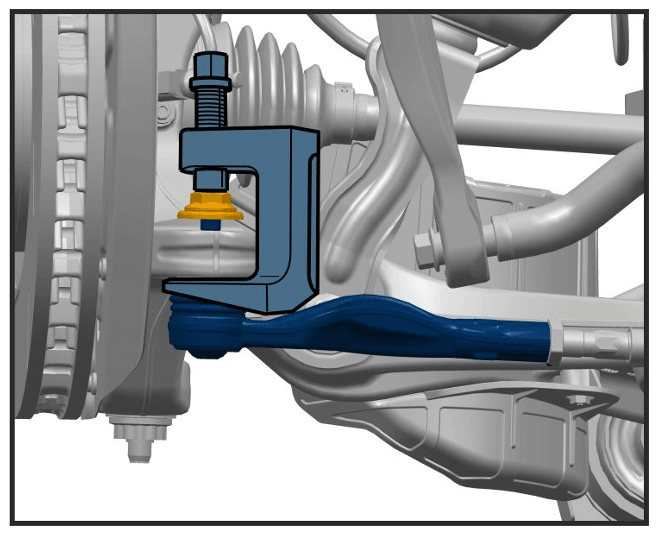

   Pressing off joint pin

3. 5.3 Unscrew nut -2-  from joint pin for the tie-rod ball.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

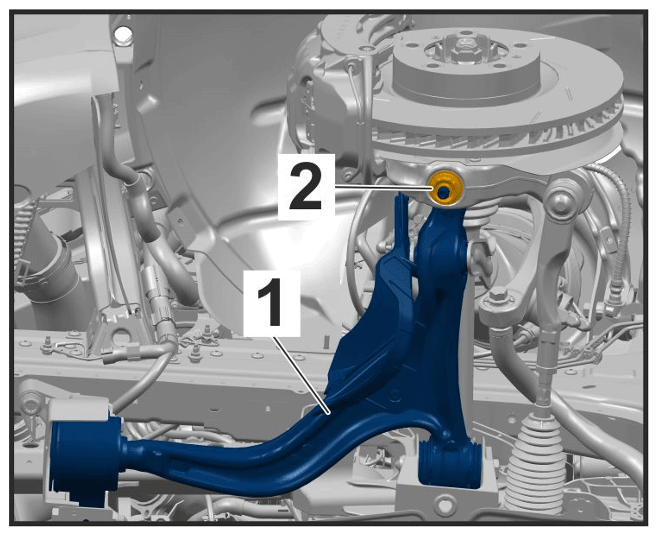

Mounting for lower trailing arm on wheel bearing housing

1. 6.1 Support upper trailing arm on the body using > VW552 - Spring tensioner  to prevent damage to the ball joint on the upper trailing arm due to the weight of the wheel bearing housing.
   1. 6.1.1 > VW552 - Spring tensioner  must be secured to body > Securing spring compressor to body.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

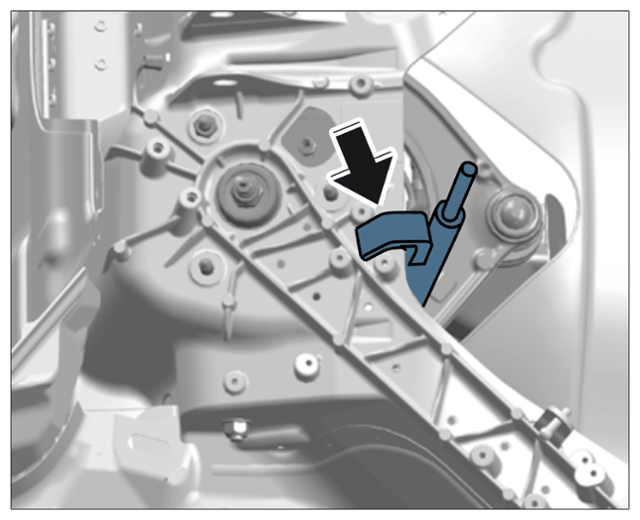

      Securing spring compressor to body

   2. 6.1.2 > VW552 - Spring tensioner  must be secured to the upper trailing arm > Securing spring compressor to upper trailing arm.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

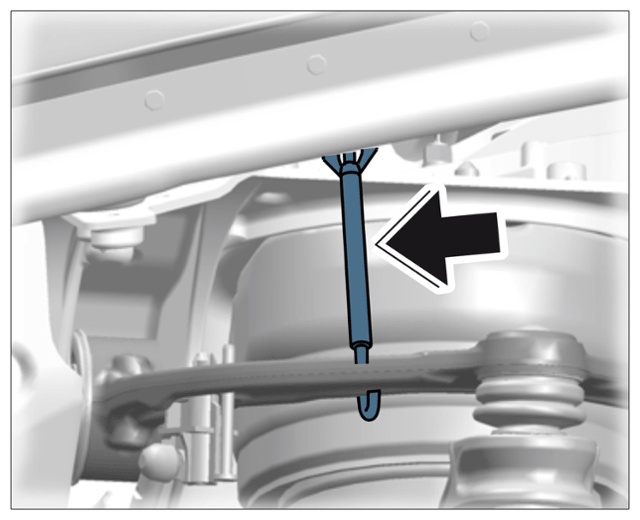

      Securing spring compressor to upper trailing arm

   3. 6.1.3 > VW552 - Spring tensioner  must be pre-tensioned slightly.
2. 6.2 Unscrew nut -2-  on joint pin for lower axle joint as far as required until it is flush with the upper edge of the joint pin.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for lower trailing arm on wheel bearing housing

3. 6.3 Remove sleeve -1-  from > T10187 - Press-out tool  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

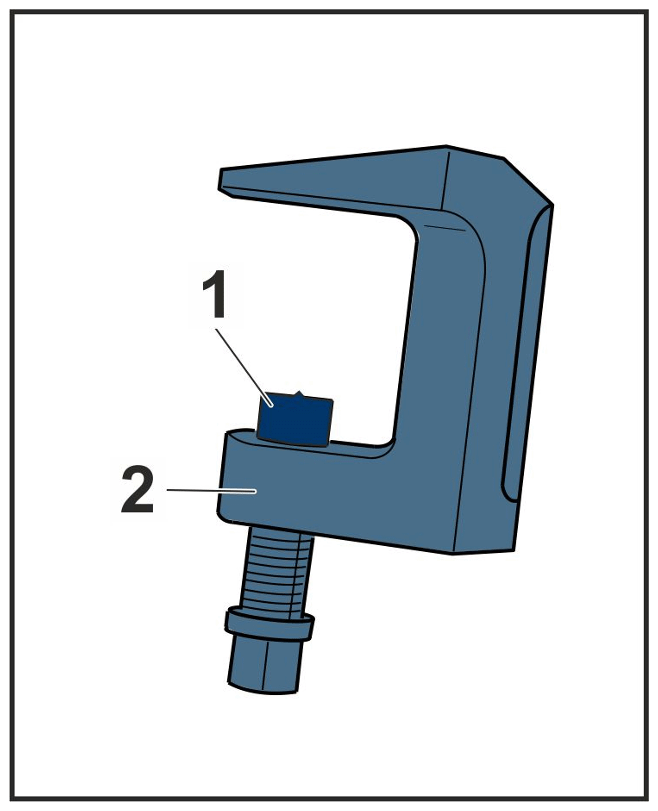

   Removing sleeve from T10187

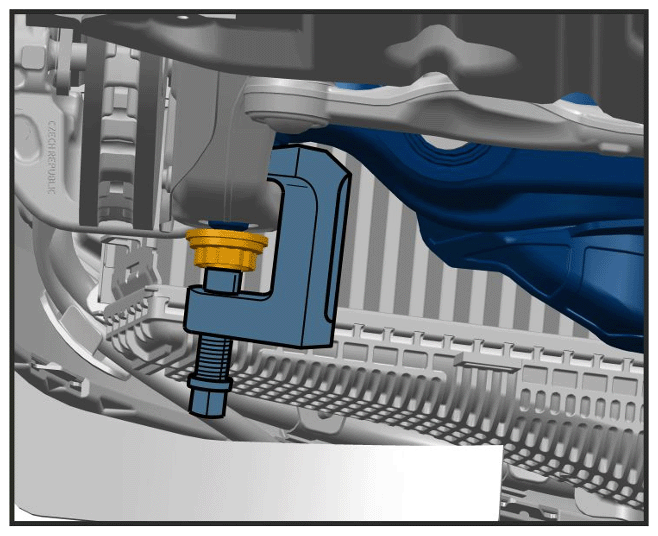

4. 6.4 Press off joint pin on the lower trailing arm using > T10187 - Press-out tool  > Pressing off joint pin

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pressing off joint pin

5. 6.5 Screw off nut -2-  on joint pin for the axle joint.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for lower trailing arm on wheel bearing housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

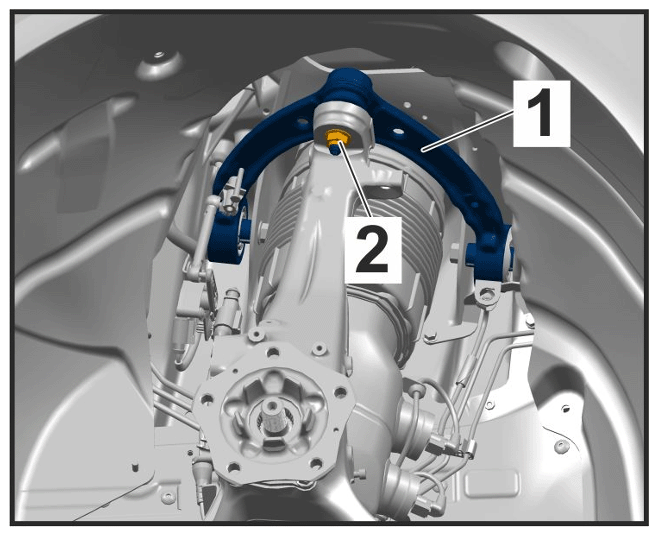

Mounting for upper trailing arm on wheel bearing housing

1. 7.1 Unscrew nut -2-  on joint pin for axle joint as far as required until it is flush with the upper edge of the joint pin.
2. 7.2 Press off joint pin on the upper trailing arm using > T10187 - Press-out tool  > Pressing off joint pin

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

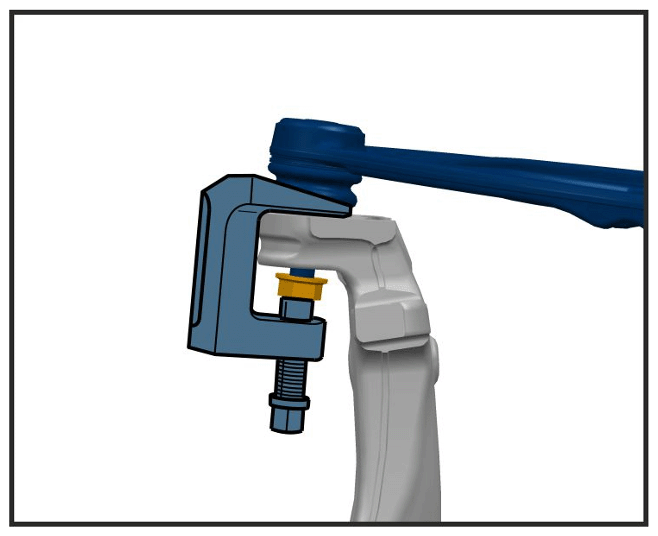

   Pressing off joint pin

3. 7.3 Screw off nut -2-  on joint pin for the axle joint.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for upper trailing arm on wheel bearing housing

1. 8.1 For vehicles with all-wheel drive:  Pull the drive shaft out of the splines of the wheel hub and set it down carefully on the lower trailing arm.
