Preliminary Work
WARNING: This page is about a different variant/trim than selected.
- For vehicles with all-wheel drive:
Remove the relevant hub cap using > 9229/1 - puller hook
and loosen axle nut -1-
before raising the vehicle. Operate the brake while doing this (2nd mechanic required).

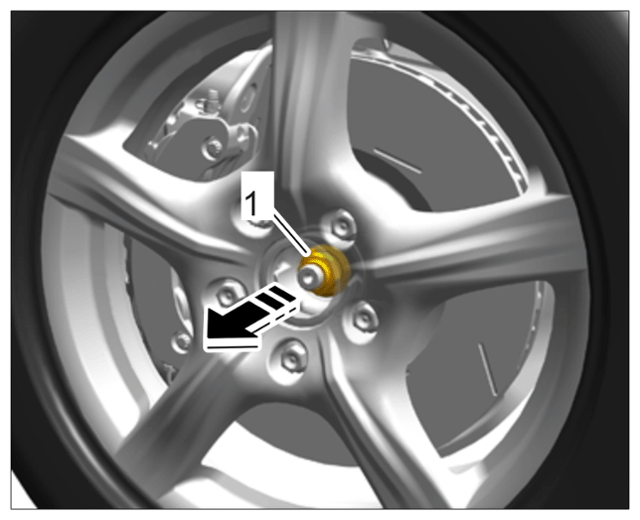

Axle nut (front axle shown)
- Remove brake disc.
- Remove connecting link for anti-roll bar.
> 407819 REMOVING AND INSTALLING CONNECTING LINK FOR ANTI-ROLL BAR
- Remove front speed sensor.
