Removing And Installing Front Drive Shaft

WARNING: This page is about a different variant/trim than selected.
  1. The front drive shaft is removed and installed together with the air-spring strut (see information on vehicles with steel springs or air suspension!  )

    see

    > 408519 REMOVING AND INSTALLING FRONT SPRING STRUT

    or

    > 433019 REMOVING AND INSTALLING FRONT AIR-SPRING STRUT

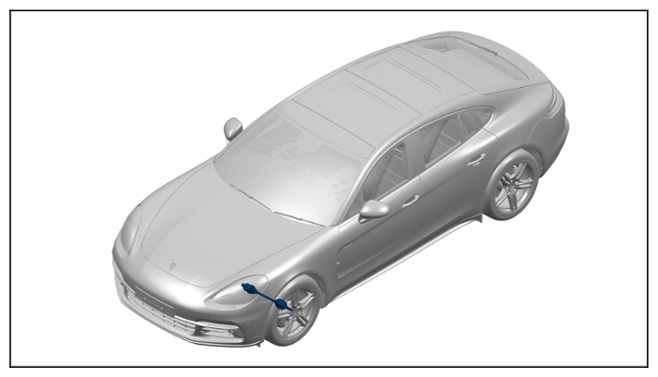

    G15857502Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installation position
