Technical Values

WARNING: This page is about a different variant/trim than selected.

*Location	*Description	*Type	*Basic value	*Tolerance 1
Front axle carrier to body front	M12 x 1.5 x 90 thread/always replace bolts following removal.	Initial tightening	70 Nm (51.6 ftlb.)
Front axle carrier to body front	M12 x 1.5 x 90 thread/always replace bolts following removal.	Final tightening	+ 180°
Front axle carrier to rear body	Hexagon-head bolt, M10 x 45	Tightening torque	50 Nm (36.9 ftlb.)
Mounting anti-roll bar to body	M12 x 1.5 x 90 thread/always replace bolts following removal.	Initial tightening	70 Nm (51.6 ftlb.)
Mounting anti-roll bar to body	M12 x 1.5 x 90 thread/always replace bolts following removal.	Final tightening	+ 180°
Strut with mounting anti-roll bar to body	M12 x 1.5 x 90 thread/always replace bolts following removal.	Initial tightening	70 Nm (51.6 ftlb.)
Strut with mounting anti-roll bar to body	M12 x 1.5 x 90 thread/always replace bolts following removal.	Final tightening	+ 180°
Strut to body	Hexagon-head bolt, M10 x 25/always replace bolts following removal.	Initial tightening	50 Nm (36.9 ftlb.)
Strut to body	Hexagon-head bolt, M10 x 25/always replace bolts following removal.	Final tightening	+ 45°

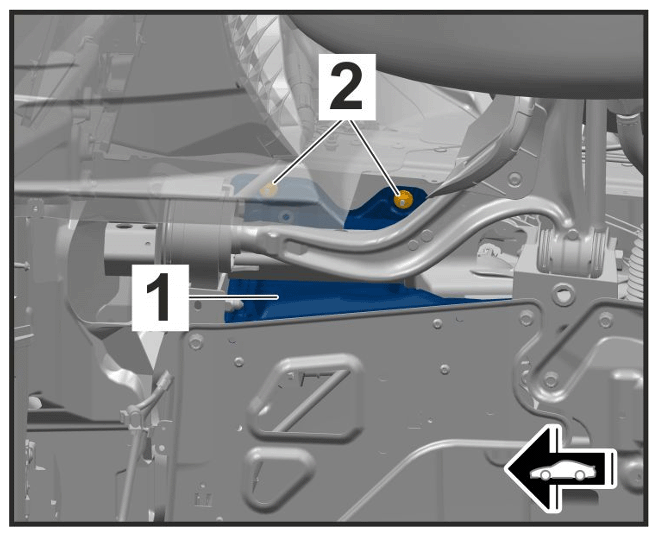

Heat insulation on longitudinal member	Item 2: Hexagon nut	Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening heat insulation (diesel engines)
Steering column to steering column centre (universal joint)	Hexagon round-head bolt, M8 x 30/always replace bolt following removal!	Final tightening torque angle	+ 90°
Steering column centre to power-steering gear (universal joint)	Hexagon round-head bolt, M8 x 30/always replace bolt following removal!	Initial tightening	20 Nm (15 ftlb.)

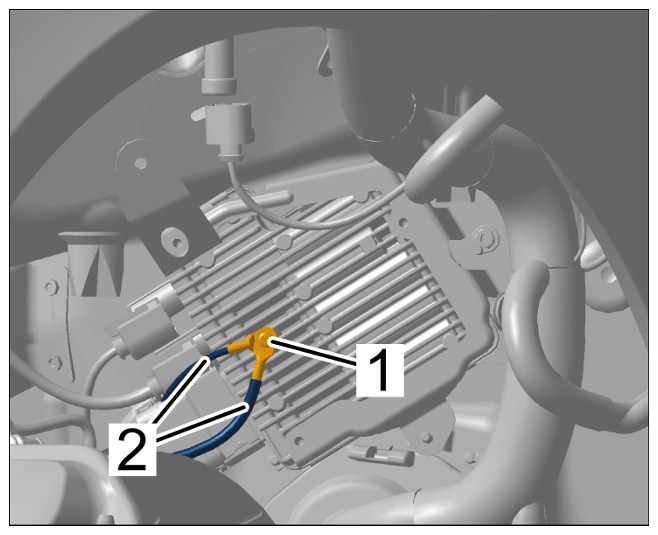

Ground line to front PDCC (EAWS) control unit	Item 1: Internal hexagon round-head bolt, M5	Tightening torque	5.6 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Disconnecting ground lines
Screws securing engine mount to bracket	M12 x 1.5 x 60/replace	Initial tightening	70 Nm (52 ftlb.)
Screws securing engine mount to bracket		Final tightening	+ 90°
Fastening screws securing engine mount to bracket	M10 x 45	Tightening torque	55 Nm (41 ftlb.)
Fastening screw securing engine mount to front axle	M12 x 60 x 1.5	Initial tightening	70 Nm (52 ftlb.)
Fastening screw securing engine mount to front axle	M12 x 60 x 1.5	Final tightening	+ 90°
Screw-type clamp for pressure hose		Tightening torque	5.5 Nm (4 ftlb.)	+/- 0.5 Nm (0.3 ftlb.)
