Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance 1 Tolerance 2
Speed sensor to wheel bearing housing Item 2: Cheese head bolt, M6 x 16 Tightening torque 8 Nm (6 ftlb.)
G15859283Courtesy of PORSCHE CARS NORTH AMERICA, INC.

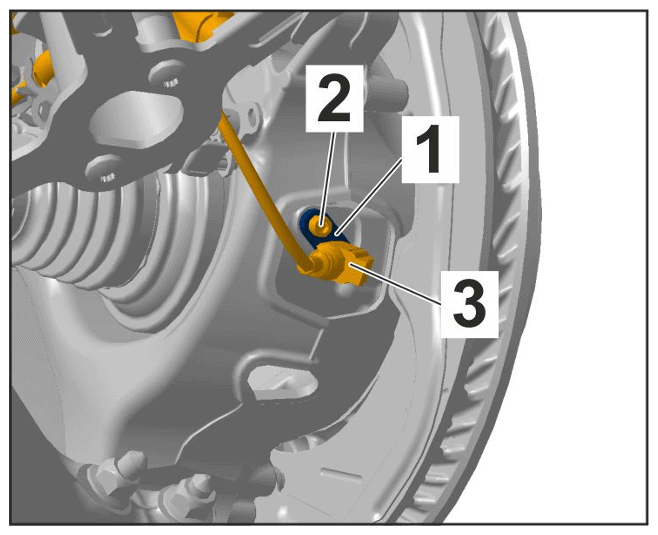

Speed sensor mounting
Cable holder to wheel bearing housing Item 2, top: Hexagon-head bolt, M6 x 16 Tightening torque 8 Nm (6 ftlb.)
G15859284Courtesy of PORSCHE CARS NORTH AMERICA, INC.

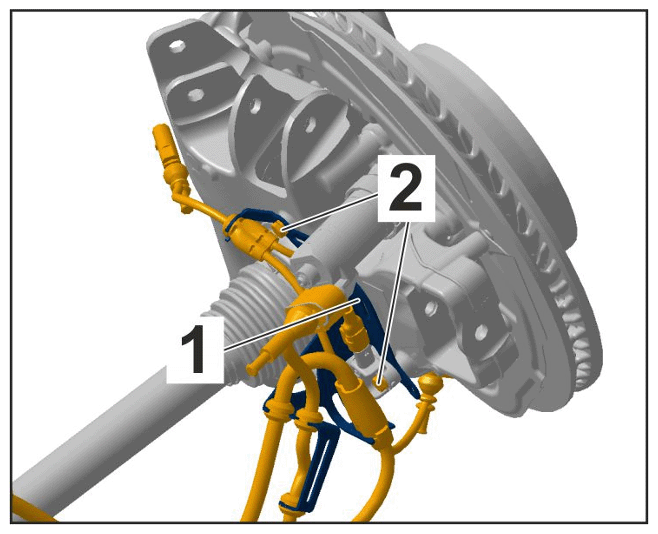

Cable holder mounting
Sensor for body with cable holder to wheel bearing housing Item 2, bottom: Hexagon-head bolt, M6 x 25 Tightening torque 8 Nm (6 ftlb.)
G15859285Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable holder mounting
Trailing arm to wheel bearing housing Hexagon-head bolt, M12 x 1.5 x 105 and hexagon nut/always replace bolts and nuts following removal! Initial tightening 70 Nm (52 ftlb.)
Trailing arm to wheel bearing housing Hexagon-head bolt, M12 x 1.5 x 105 and hexagon nut/always replace bolts and nuts following removal! Final tightening torque angle + 180°
Control arm spoiler to trailing arm Item 1: Hexagon-head bolt, M6 x 25 Tightening torque 8 Nm (6 ftlb.)
G15859286Courtesy of PORSCHE CARS NORTH AMERICA, INC.

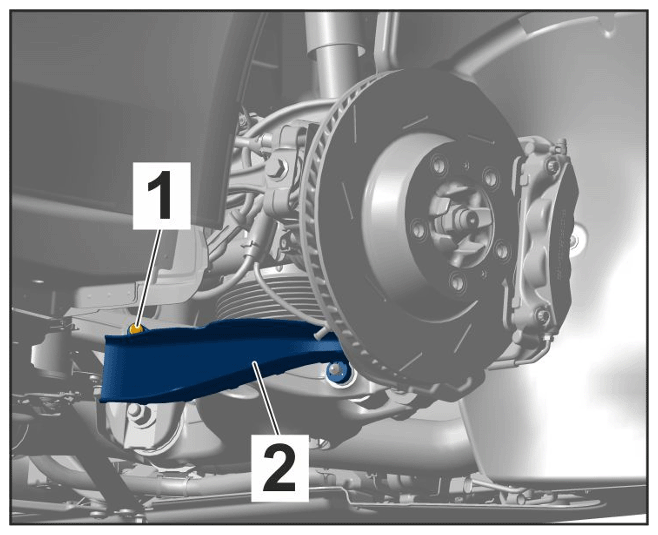

Control arm spoiler on trailing arm
Tie rod to wheel bearing housing Hexagon-head bolt, M12 x 1.5 x 85/always replace bolts following removal! Initial tightening 70 Nm (52 ftlb.)
Tie rod to wheel bearing housing Hexagon-head bolt, M12 x 1.5 x 85/always replace bolts following removal! Final tightening torque angle + 90°
Front upper control arm to wheel bearing housing Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal! Initial tightening 70 Nm (52 ftlb.)
Front upper control arm to wheel bearing housing Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal! Final tightening torque angle + 90°
Rear upper control arm to wheel bearing housing Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal! Initial tightening 70 Nm (52 ftlb.)
Rear upper control arm to wheel bearing housing Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal! Final tightening torque angle + 90°
Drive shaft to wheel hub Item 1: Hexagon nut, M22 x 1.5/always replace nut following removal! Tightening torque 460 Nm (340 ftlb.)
G15859287Courtesy of PORSCHE CARS NORTH AMERICA, INC.

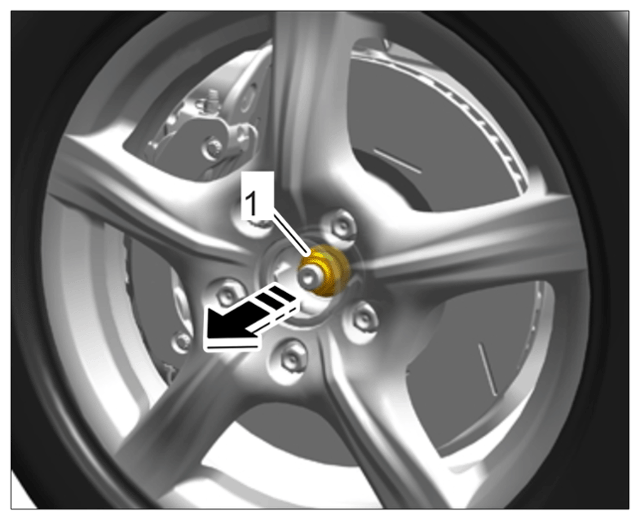

Axle nut
Brake cover panel to wheel bearing housing Item 2: Hexagon-head bolt, M6 x 16/always replace bolts following removal! Tightening torque 8 Nm (6 ftlb.)
G15859288Courtesy of PORSCHE CARS NORTH AMERICA, INC.

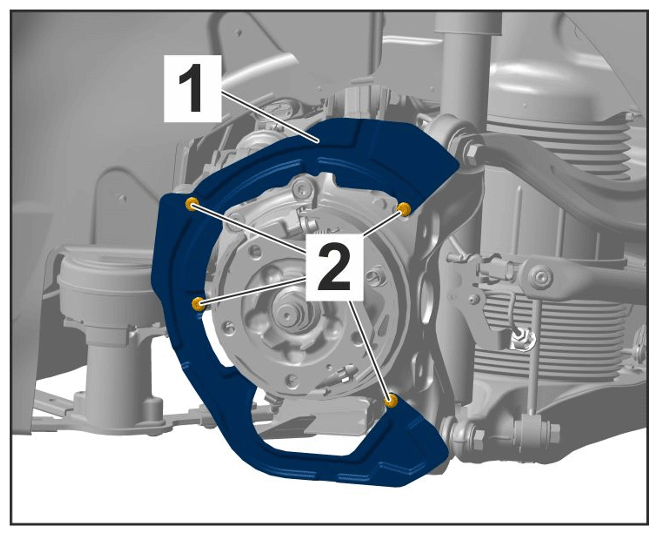

Mounting for brake cover panel
Screw securing holder for rear angle sensor for headlight beam adjustment to trailing arm Item 1/always replace screws following removal! Initial tightening 3 Nm (2 ftlb.)
Screw securing holder for rear angle sensor for headlight beam adjustment to trailing arm Item 1/always replace screws following removal! Final tightening + 45°
G15859289Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing holder for rear angle sensor for headlight beam adjustment to trailing arm
Pressing in drive shaft Press the drive shaft peg max. 10 mm into the wheel hub Control value + 10 mm
