Removing Anti-Roll Bar

WARNING: This page is about a different variant/trim than selected.
  1. Remove protective plate on the rear axle housing bearing -1-  on both sides of the vehicle.

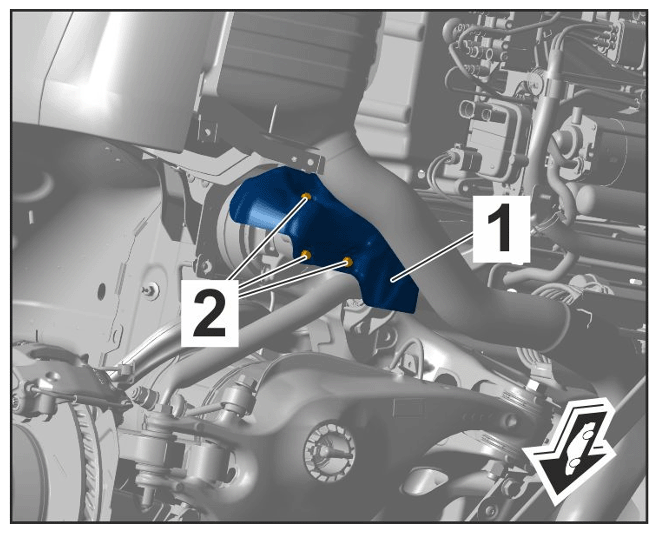

    G15857974Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for protective plate

    1. 1.1 Unscrew fastening screws -2-  .
  2. Remove anti-roll-bar mount -1-  .

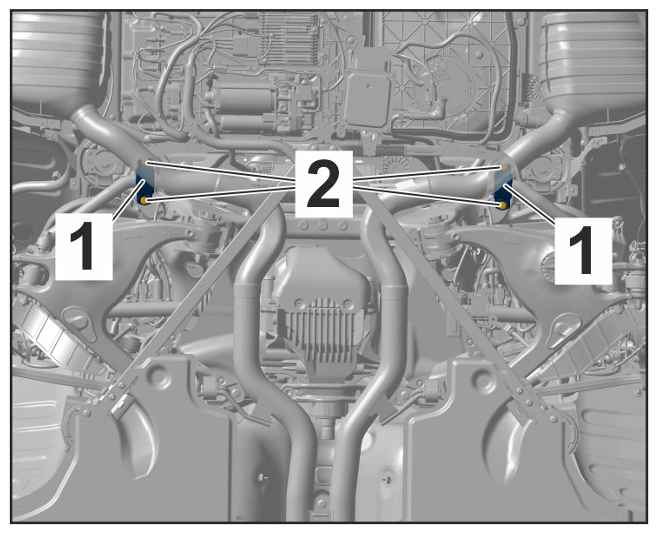

    G15857975Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for anti-roll-bar mount

    1. 2.1 Unscrew fastening screws -2-  .
  3. With the help of another person, turn the anti-roll bar alternately -arrow A-  to the right and guide it out -arrow B-  .

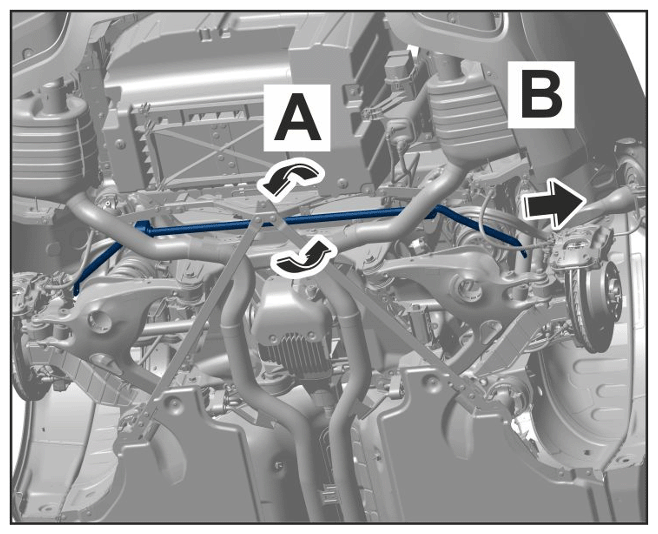

    G15857976Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Guiding out anti-roll bar
