Removing Coil Spring

Information

• Do not press coil springs together onto the block.
• Do not damage the surface of the coil springs (corrosion protection).
• Do not use solvents to clean the coil springs.

Information

The following tools are required:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

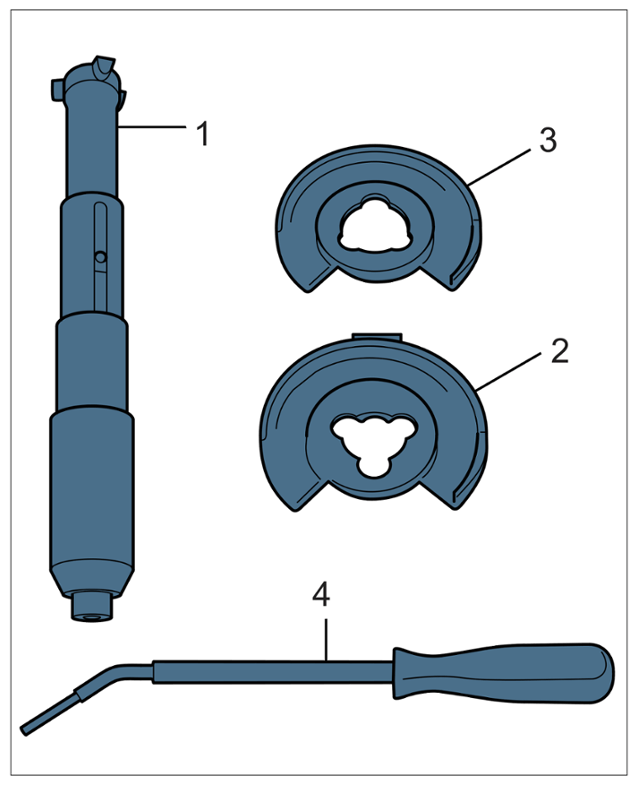

Spring compressor

1. Loosen holder for level sensor -2-  from the trailing arm.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for level sensor holder

   1. 1.1 Unscrew fastening screw -1-  .

   Information

   Insert upper spring tensioning plate in such a way that the support for the countering wrench is accessible.

2. Insert spring tensioning plate with latch -1-  (> 9823/1 - Spring tensioning plates  ) as far up as possible in the coil spring.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

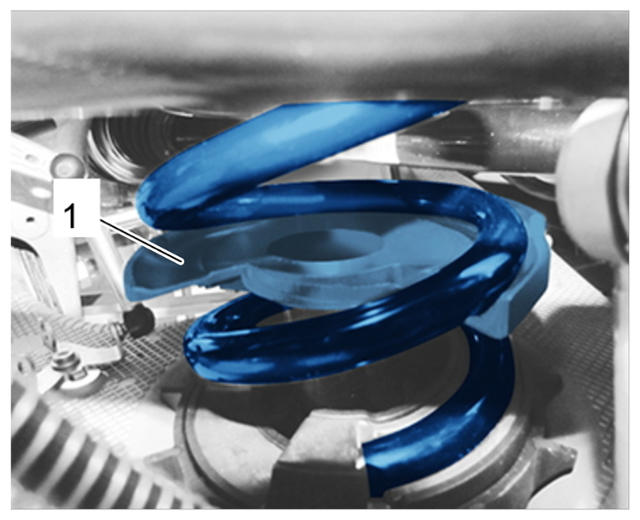

   Spring tensioning plate, top

3. Insert lower spring tensioning plate -1-  (> 9823/1 - Spring tensioning plates  ) as far down as possible in the coil spring.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

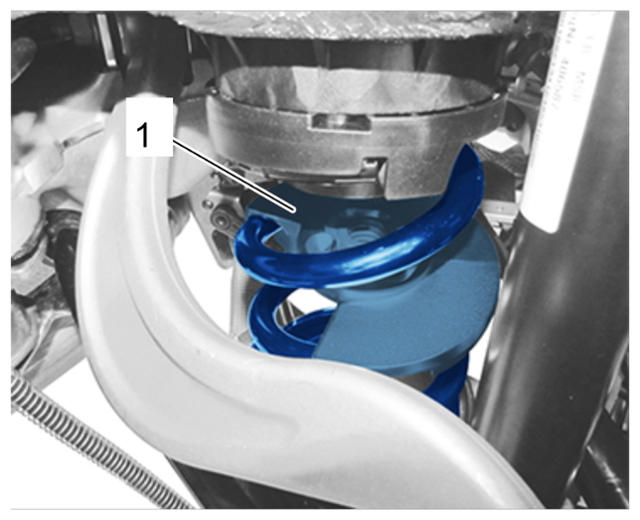

   Spring tensioning plate, bottom

4. Turn the clamping cylinder -1-  apart (as far as required) and guide it through both spring tensioning plates -2-  from below.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

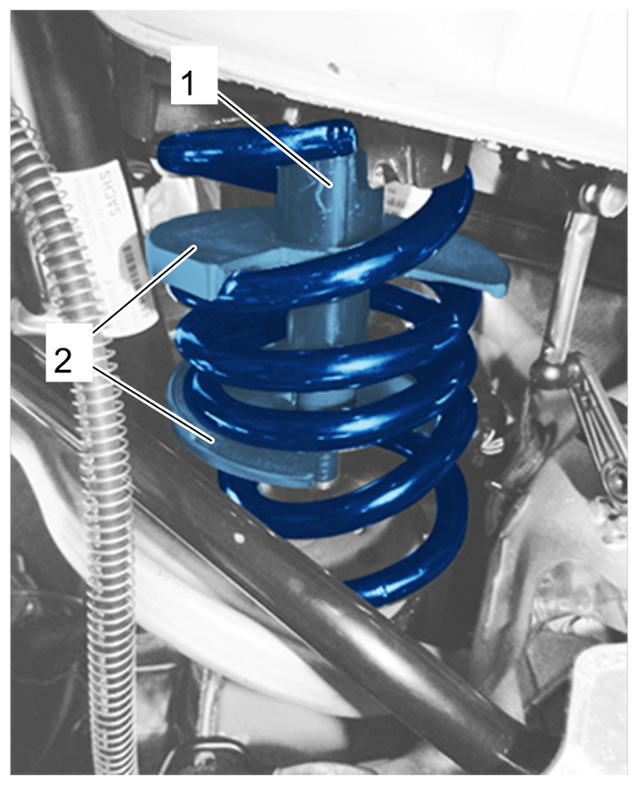

   Guiding in clamping cylinder

5. Turn the plunger of the clamping cylinder through 60° to lock it in the upper spring tensioning plate.

   Information

   • The spring tensioning plates must be flush with the coil spring. If necessary, carefully adjust the spring tensioning plates during the clamping process.
   • Counter at the upper spring tensioning plate using the holding wrench during the clamping process.
6. Tension the coil spring as required > Tensioning coil springs  until the spring plates can be removed.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

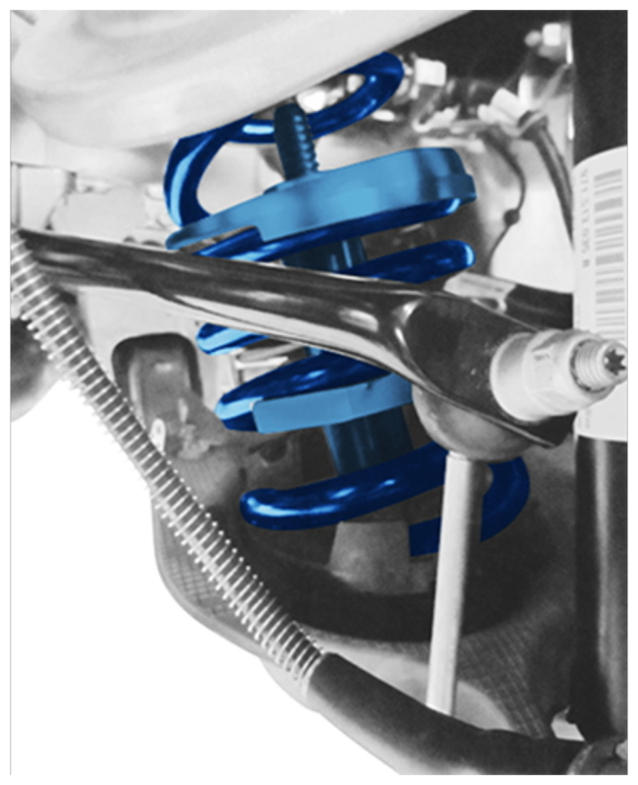

   Tensioning coil springs

7. Carefully remove inserts and coil spring.
