Installing Coil Spring

Information

If the coil spring is replaced: Always replace coil springs in pairs only!

Information

Observe information on coil spring colour markings and insert colours.

• Use the same colour as with the previously installed inserts.

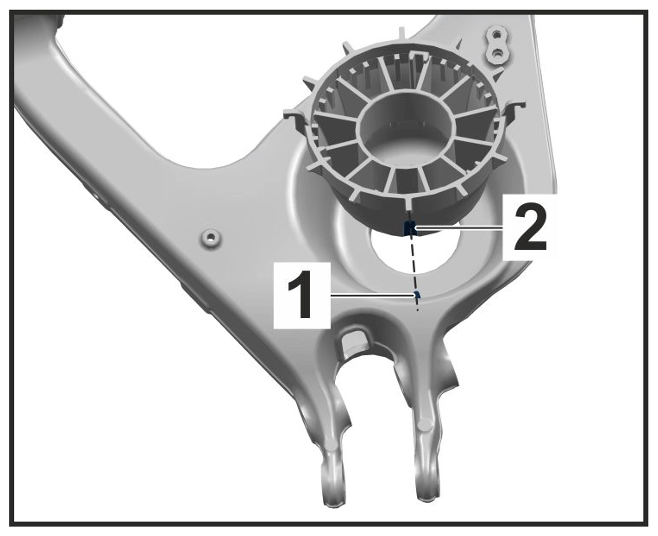

1. Fit bottom insert into the trailing arm in such a way that the lug -1-  engages in the groove -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Alignment of bottom insert

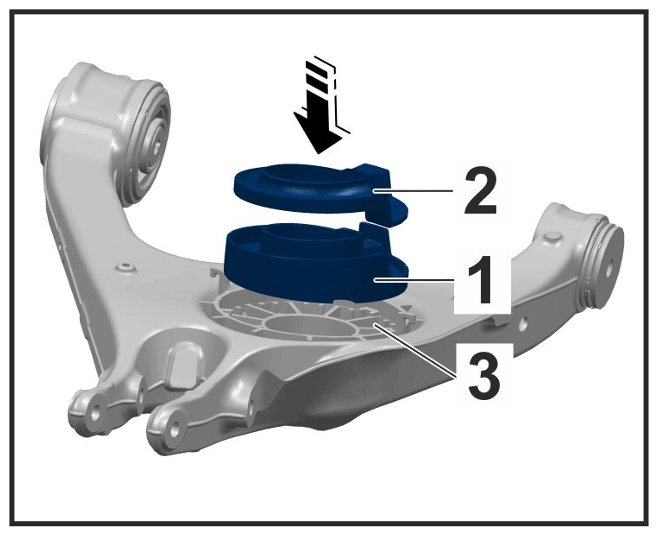

2. Fit insert -1-  with spring plate -2-  at the bottom into the bottom insert -3-  (contours must match!).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting insert with spring plate

   Information

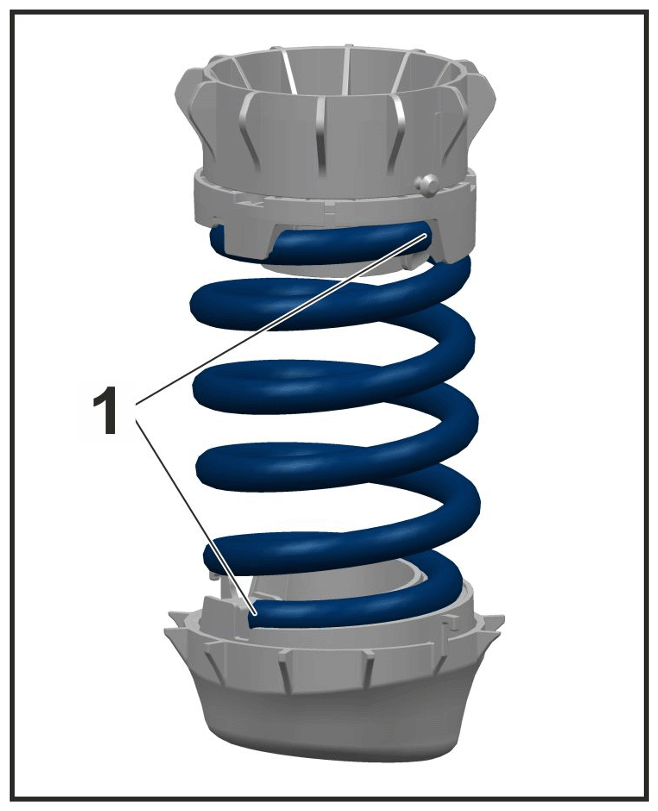

   The top and bottom end of the spring coil must be touching the stop on the spring plates -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing coil springs

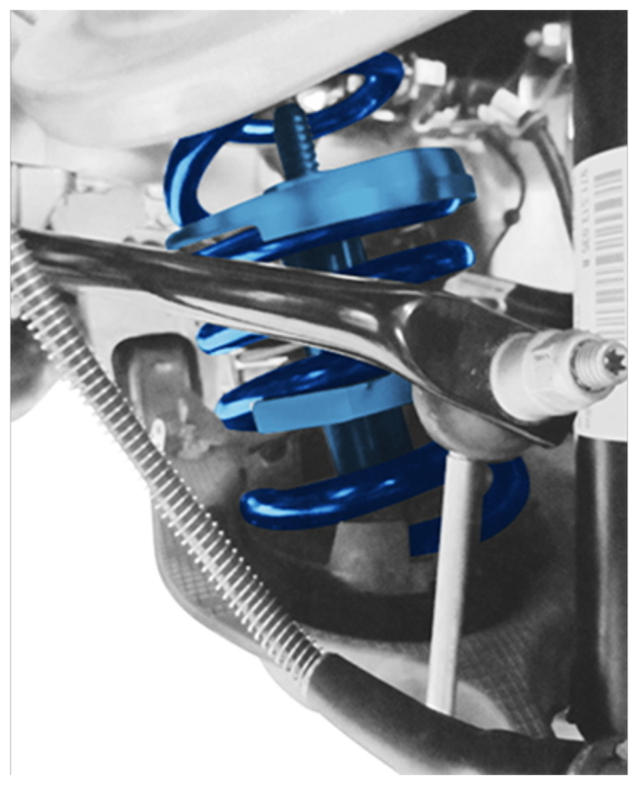

3. Fit top inserts with spring plate at the top together with coil spring > Inserting coil spring.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Inserting coil spring

4. Carefully relieve tension on the coil spring and remove clamping cylinder using > 9823/1 - spring clamp plates  .
