Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance 1 Tolerance 2
Mounting plate for wheel bearing to wheel bearing housing Item 2: Hexagon-head bolt, M8x 35/always replace bolts following removal! Initial tightening 20 Nm (15 ftlb.)

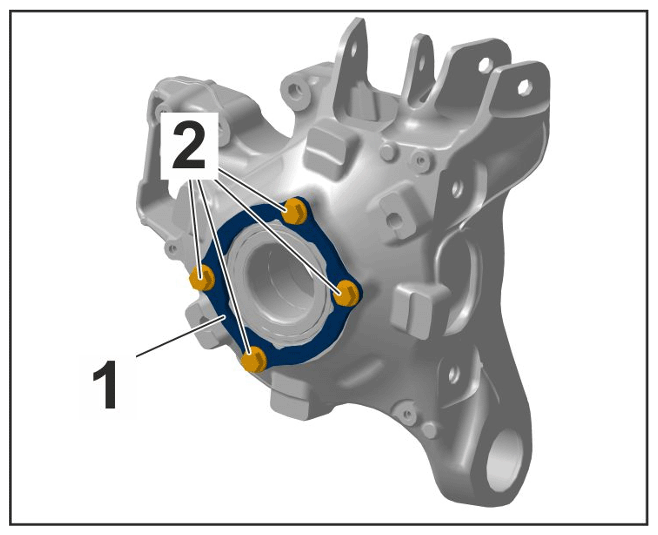

G15857930Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting plate on wheel bearing housing
Mounting plate for wheel bearing to wheel bearing housing Item 2: Hexagon-head bolt, M8x 35/always replace bolts following removal! Final tightening torque angle + 90°
G15857931Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting plate on wheel bearing housing
Heating wheel bearing housing Before pressing in wheel bearing Temperature 80°C
