Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove rear brake disc.

    > 465319 REMOVING AND INSTALLING REAR BRAKE DISC

    > 465419 REMOVING AND INSTALLING REAR PCCB BRAKE DISC

  2. Tighten axle nut -1-  . Operate the brake while doing this (2nd mechanic required) > Tightening torque 460 Nm (340 ftlb.)

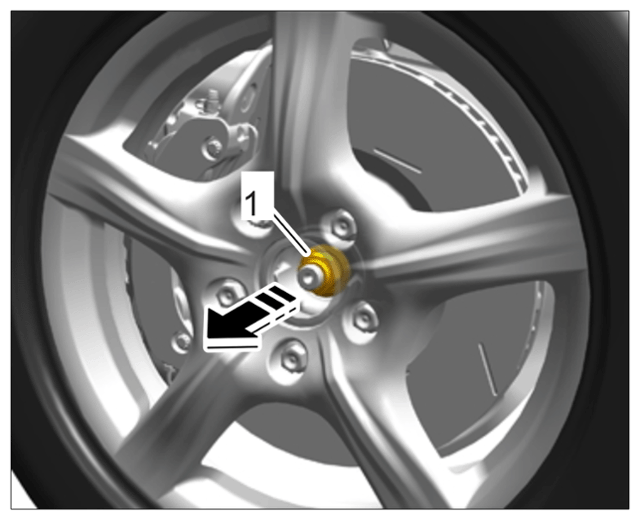

    G15857903Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Axle nut (front axle shown)

  3. Fit hub cap.
  4. Perform suspension alignment.

    > 449503 PERFORMING FRONT AND REAR SUSPENSION ALIGNMENT
