Removing Wheel Bearing Housing

WARNING: This page is about a different variant/trim than selected.
  1. Remove brake cover panel -1-  .
    G15857886Courtesy of PORSCHE CARS NORTH AMERICA, INC.

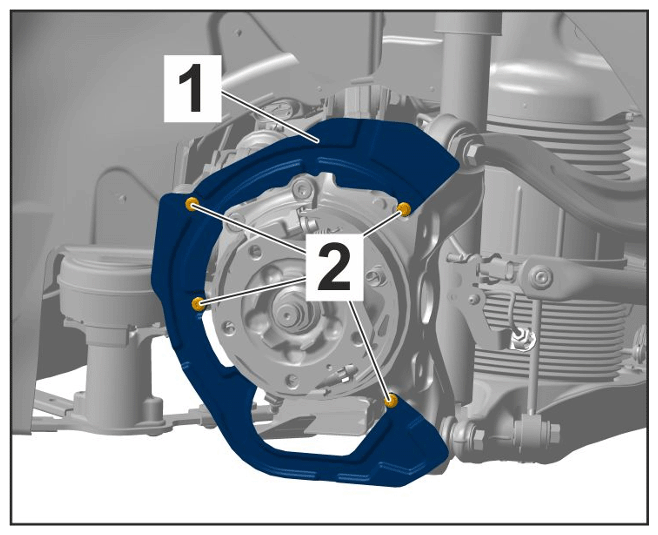

    Mounting for brake cover panel

    1. 1.1 Unscrew fastening screws -2-  .
  2. Remove control arm spoiler -2-  .
    G15857887Courtesy of PORSCHE CARS NORTH AMERICA, INC.

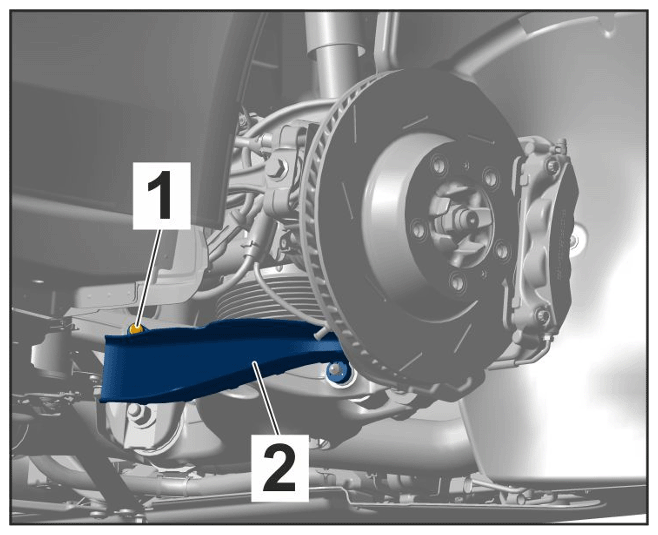

    Control arm spoiler on trailing arm

    1. 2.1 Unscrew fastening screw -1-  .
    2. 2.2 Pull control arm spoiler lug off the shock absorber threaded joint.
  3. Loosen holder for level sensor -2-  from the trailing arm.
    G15857888Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for level sensor holder

    1. 3.1 Unscrew fastening screw -1-  .
  4. Remove speed sensor -1-  .
    G15857889Courtesy of PORSCHE CARS NORTH AMERICA, INC.

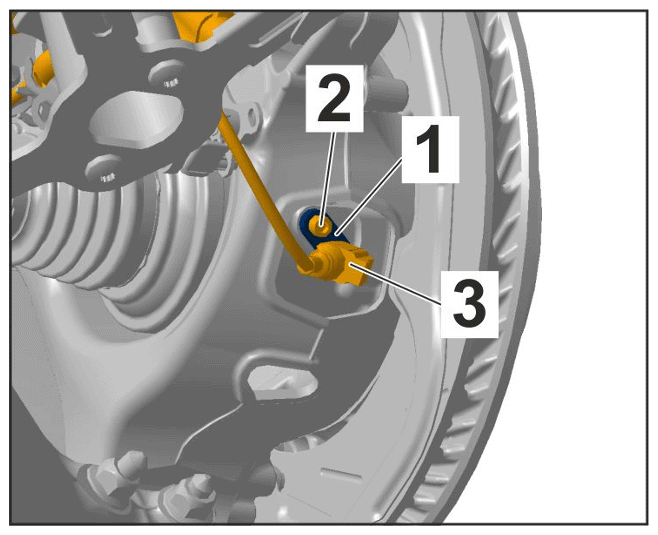

    Speed sensor mounting

    1. 4.1 Unscrew fastening screw -2-  .
  5. Remove cable holder -1-  .
    G15857890Courtesy of PORSCHE CARS NORTH AMERICA, INC.

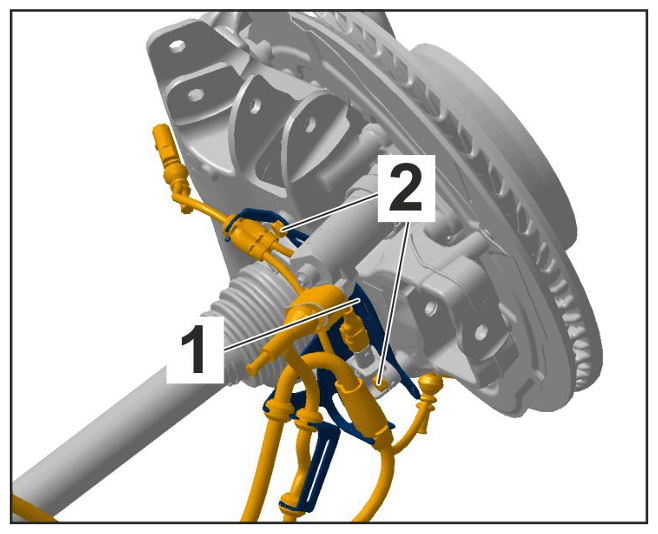

    Cable holder mounting

    1. 5.1 Release and disconnect electric plug connection on EPB actuator.
    2. 5.2 Unscrew fastening screws -2-  .
  6. Use > VAS 6926 - Puller set  to press the drive shaft peg max > Control value + 10 mm  into the wheel hub so that the drive shaft splines are no longer engaged in the wheel hub > Pressing in drive shaft
    G15857891Courtesy of PORSCHE CARS NORTH AMERICA, INC.

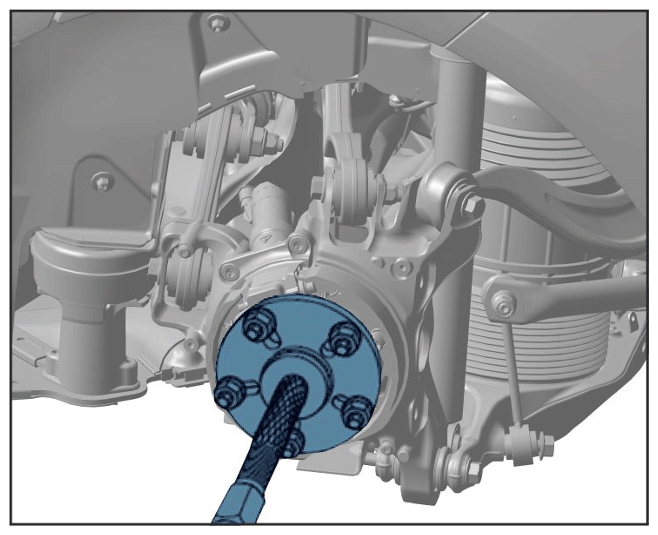

    Pressing in drive shaft

  7. Loosen threaded joint -1-  slightly (do not remove it!).
    G15857892Courtesy of PORSCHE CARS NORTH AMERICA, INC.

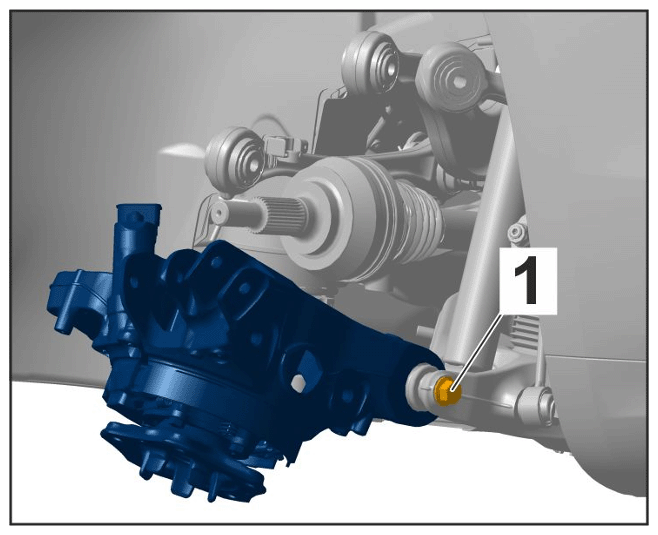

    Removing wheel bearing housing

    Information

    • The wheel bearing housing can tilt outwards.
    • Do not leave drive shafts hanging from the joint stop.
  8. Loosen tie rod and upper control arm on the wheel bearing housing.
    G15857893Courtesy of PORSCHE CARS NORTH AMERICA, INC.

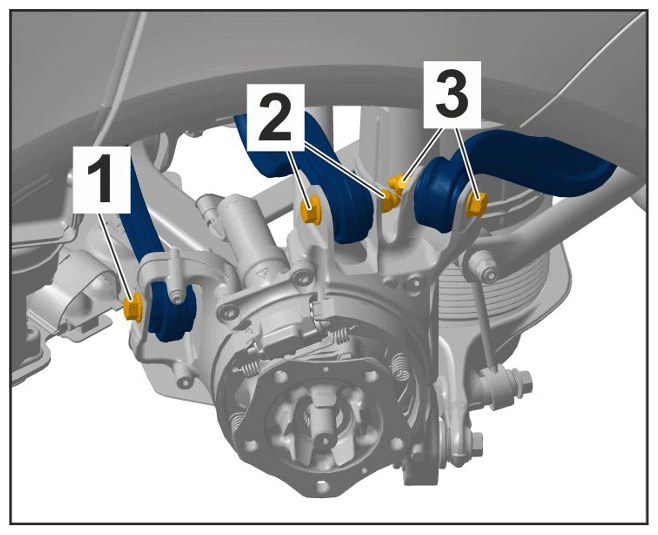

    Mounting for tie rod and upper control arm

    1. 8.1 Get a second person to hold the wheel bearing housing and drive shaft.
    2. 8.2 Remove threaded joints -1 to 3-  .
    3. 8.3 Tilt wheel bearing housing outwards and tie up drive shaft at a suitable position.
  9. Remove threaded joint -1-  .
    G15857894Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing wheel bearing housing

  10. If the wheel bearing housing, wheel bearing or wheel hub is replaced, the brake shoes and spreader device must also be removed or converted.

    > 468320 REMOVING AND INSTALLING BRAKE SHOES

    > 468519 REMOVING AND INSTALLING SPREADER DEVICE (EPB ACTUATOR)
