Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove the relevant hub cap using > 9229/1 - puller hook  and loosen axle nut -1 -  before raising the vehicle. Operate the brake while doing this (2nd mechanic required).

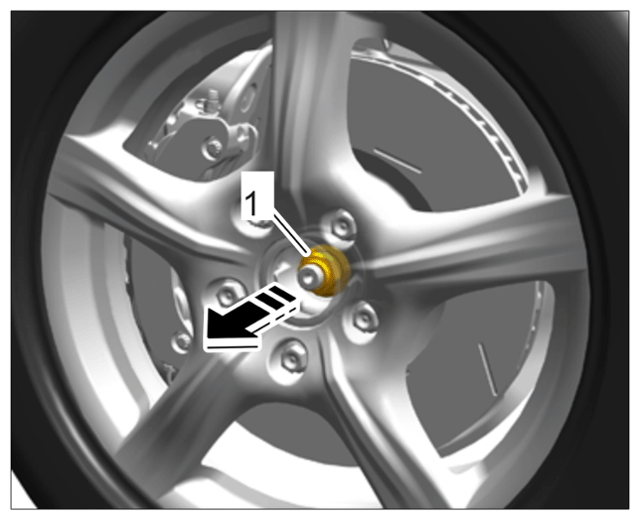

    G15857885Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Axle nut (front axle shown)

  2. Remove rear brake disc.

    > 465319 REMOVING AND INSTALLING REAR BRAKE DISC

    > 465419 REMOVING AND INSTALLING REAR PCCB BRAKE DISC
