Installation Position

WARNING: This page is about a different variant/trim than selected.
G15857867Courtesy of PORSCHE CARS NORTH AMERICA, INC.

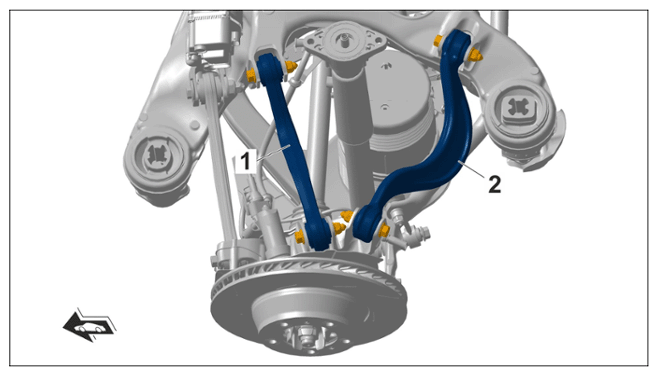

Installation position of upper control arm

1 Upper control arm, front
2 Upper control arm, rear
