Removing Drive Shaft

WARNING: This page is about a different variant/trim than selected.
  1. Pull drive shaft -1-  out of the final drive -arrow-  .

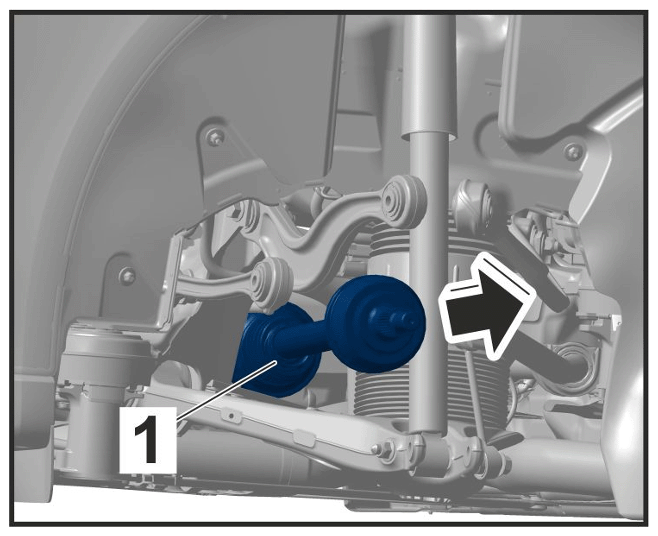

    G15857863Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling drive shaft out of final drive
