Replacing Hydraulic Mount

WARNING: This page is about a different variant/trim than selected.
WARNING: Mechanical, hydraulic or pneumatic press
  • Risk of squashing

    → Read specific safety information for the press.

    → Check that the press is working perfectly before use, particularly the safety components.

Information

The following tools are required for replacing the hydraulic mount:

  1. Press out hydraulic mount.

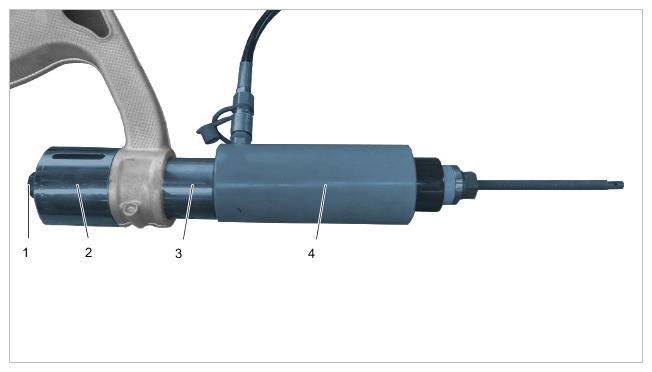

    G15857852Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressing out hydraulic mount

    1 Nut
    2 Sleeve 9895-2
    3 Pressure piece 9895-1
    4 > VAS 6178 - Hydraulic cylinder
    1. 1.1 Centre the sleeve 9895-2  and pressure piece 9895-1  on the hydraulic mount.
    2. 1.2 Press out hydraulic mount.
  2. Press in hydraulic mount.

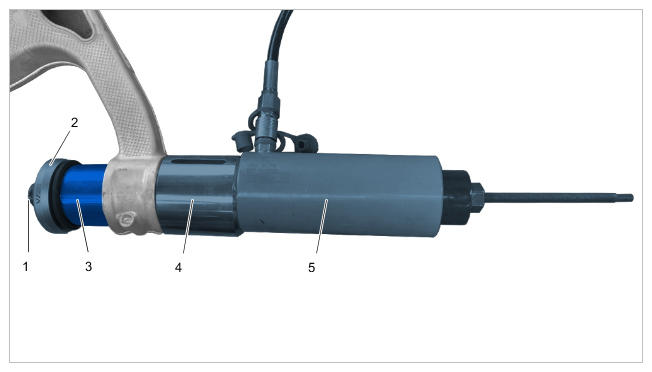

    G15857853Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressing in hydraulic mount

    1 Nut
    2 Pressure piece T10205/16
    3 Hydraulic mount
    4 Sleeve 9895-2
    5 > VAS 6178 - Hydraulic cylinder
    1. 2.1 Centre the sleeve 9895-2  and pressure piece T10205/16  on the hydraulic mount.
    2. 2.2 Align hydraulic mount.

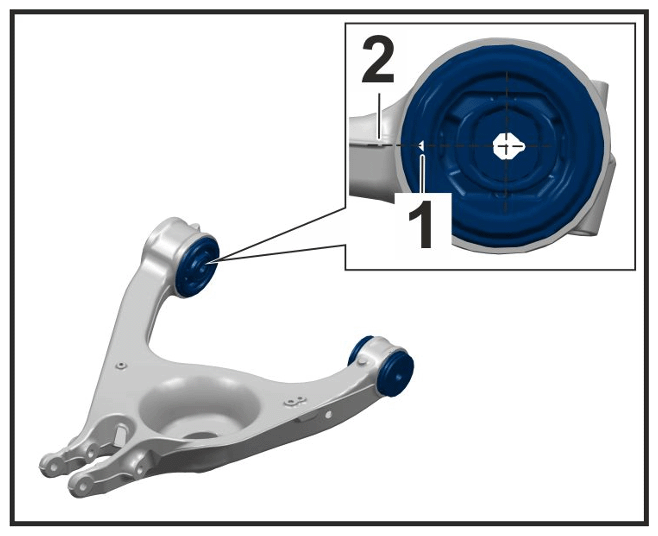

      The arrow -1-  on the hydraulic mount must be facing the wheel side, at the same height as the seam -2-  .

      G15857854Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Aligning hydraulic mount

    3. 2.3 Press in hydraulic mount as far as it will go.
