Removing Strut (Rear Section)

WARNING: This page is about a different variant/trim than selected.
  1. Remove struts (rear section) -2-  .

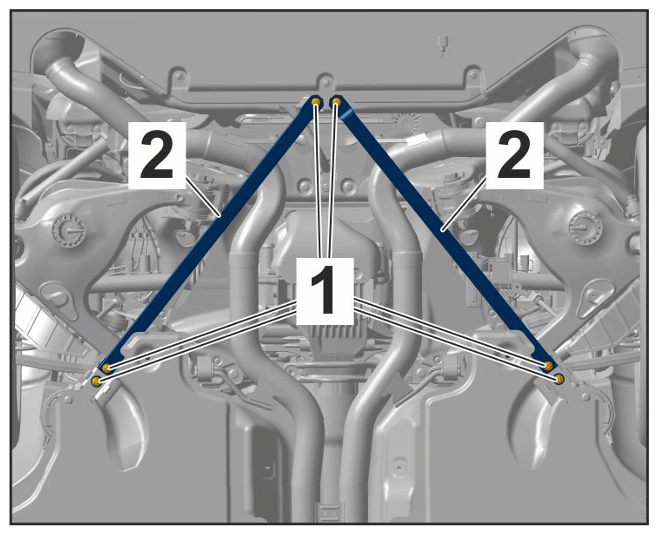

    G15857842Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for struts (rear section)

    1. 1.1 Unscrew fastening screws -1-  .
    2. 1.2 Pull off struts (rear section) -2-  to the rear.
