Removing Strut (All Struts)

WARNING: This page is about a different variant/trim than selected.
  1. Remove struts -2-  .

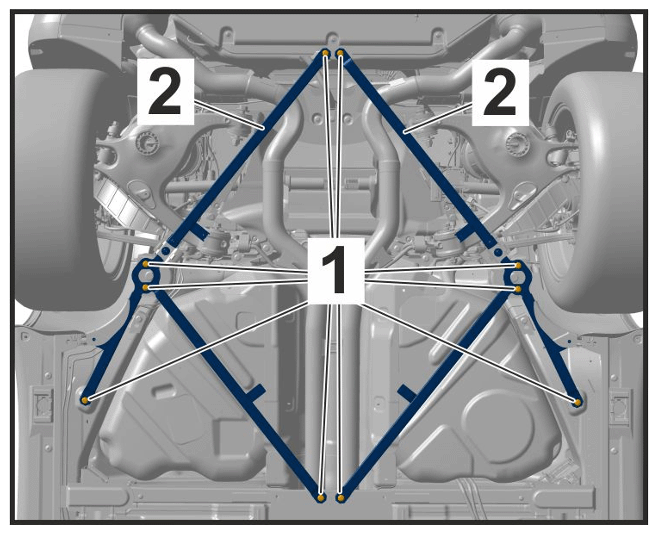

    G15857843Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for struts

    1. 1.1 Unscrew fastening screws -1-  .
    2. 1.2 Remove struts -2-  .
