Installing Strut (All Struts)

WARNING: This page is about a different variant/trim than selected.
  1. Install struts -2-  .

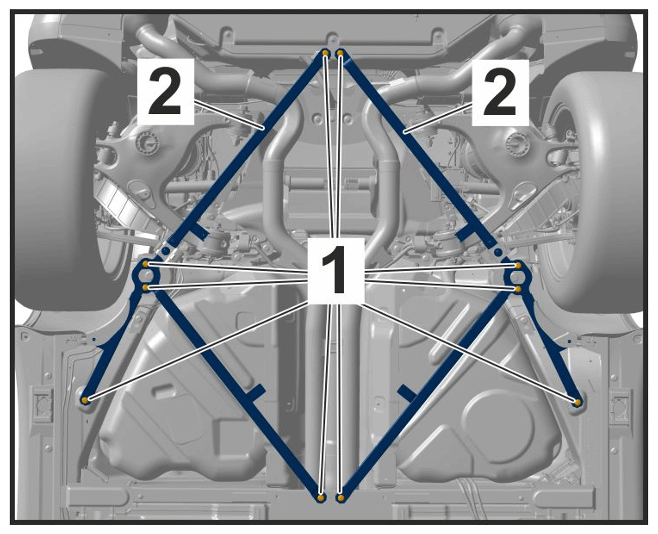

    G15857845Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for struts

    1. 1.1 Tighten fastening screws -1-  > Tightening torque 25 Nm
