Removing Trailing Arm

WARNING: This page is about a different variant/trim than selected.
  1. Remove control arm spoiler -2-  .

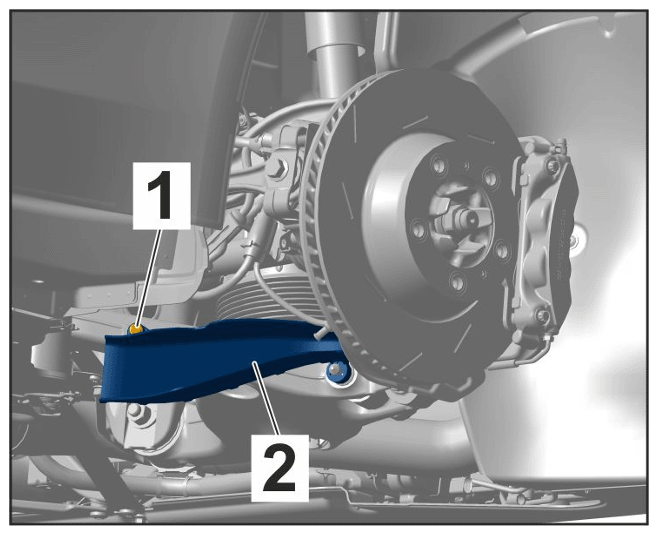

    G15857825Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control arm spoiler on trailing arm

    1. 1.1 Unscrew screw -1-  .
    2. 1.2 Pull off control arm spoiler lug at the shock absorber threaded joint.
  2. Loosen level sensor holder -2-  at the trailing arm.
    G15857826Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for level sensor holder

    1. 2.1 Unscrew screw -1-  .
    WARNING: Wheel bearing housing raised incorrectly
    • Risk of crushing
    • Risk of damage to components

      → Wear personal protective gear.

      → Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

    Information

    Always use an intermediate layer (e.g. hard rubber) when using the jack!

  3. Support wheel bearing housing using > VAS 6931 - engine and gearbox jack  .
  4. Remove threaded joint -1-  securing trailing arm, shock absorber and connecting link.

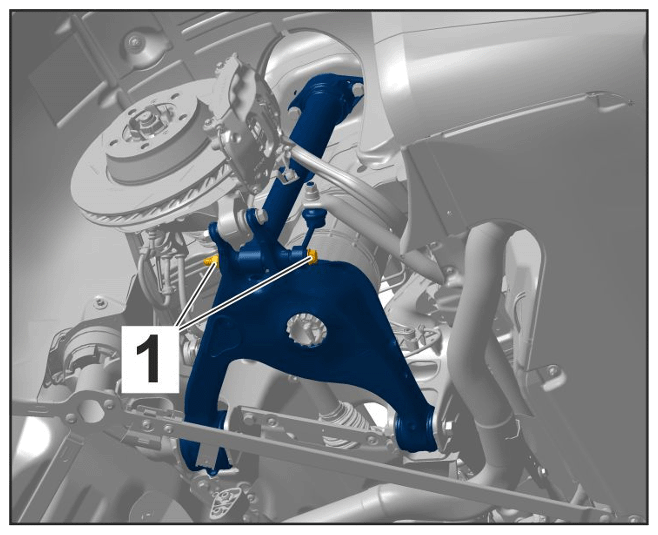

    G15857827Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for trailing arm with shock absorber and connecting link

  5. Carefully press up the rear exhaust pipe -1-  using > VAS 6931 - engine and gearbox jack-2-  and a wooden block -3-  in order to pull out the eccentric screw -4-  of the trailing arm after loosening it (Step 6).

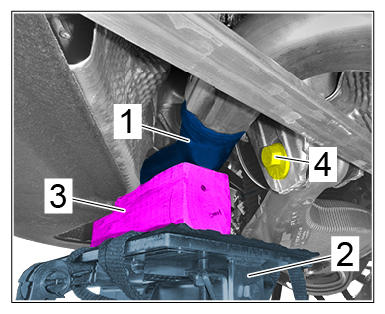

    G15857828Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressing up exhaust pipe on silencer

    Information

    • Loosen or fit nut on the trailing arm using the specified tools.
  6. Loosen nut on the trailing arm using the tools shown.

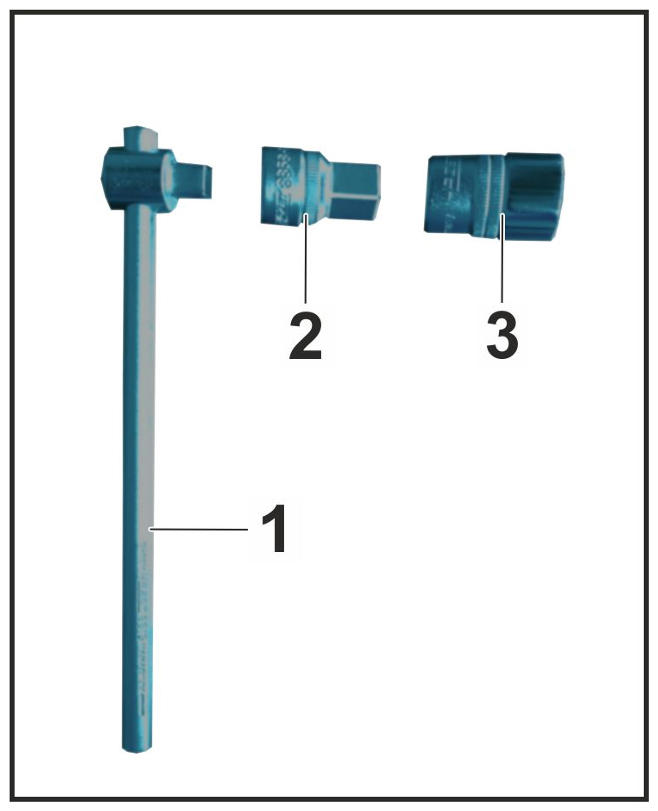

    G15857829Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Arrangement of tools

    1 Cross handle, 3/8-inch
    2 Adapter, 3/8-inch to 1/2-inch
    3 Socket
  7. Remove threaded joints securing trailing arm to rear axle housing.

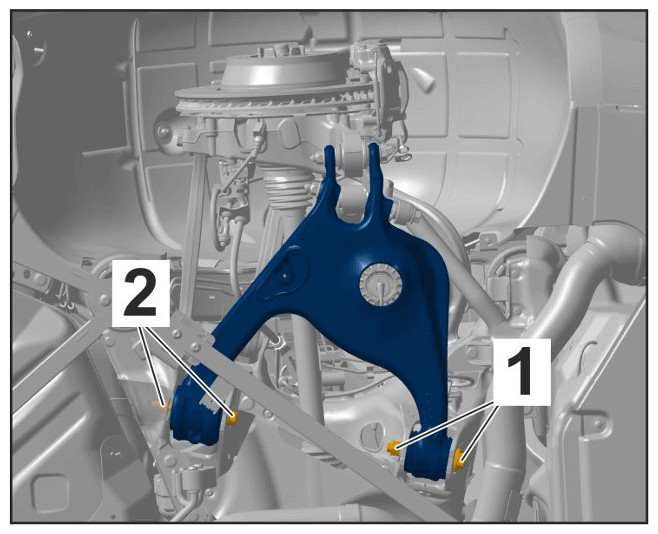

    G15857830Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for trailing arm on rear axle housing

    1. 7.1 Mark the position of the eccentric screw -1-  .
    2. 7.2 Remove eccentric threaded joint -1-  .

      Information

      • Loosen or fit nut on the trailing arm using the specified tools.
    3. 7.3 Remove threaded joint -2-  .
  8. Remove threaded joint securing trailing arm to wheel bearing housing -1-  .

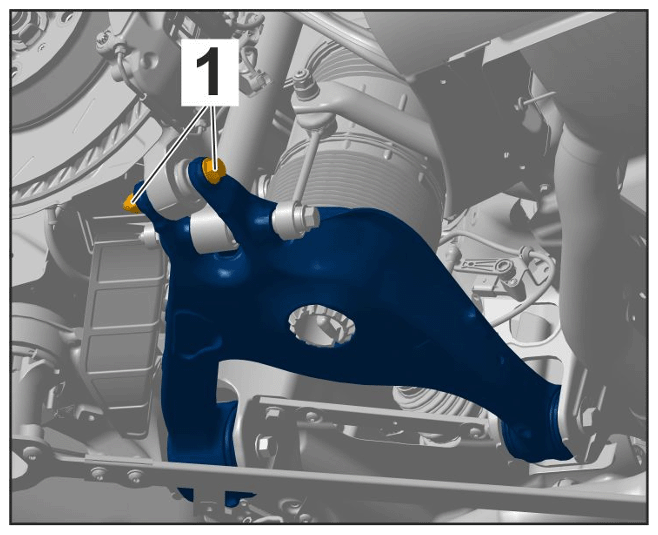

    G15857831Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for trailing arm on wheel bearing housing
