Installing Trailing Arm

WARNING: This page is about a different variant/trim than selected.
  1. Install threaded joint securing trailing arm to wheel bearing housing -1-  (do not tighten!).

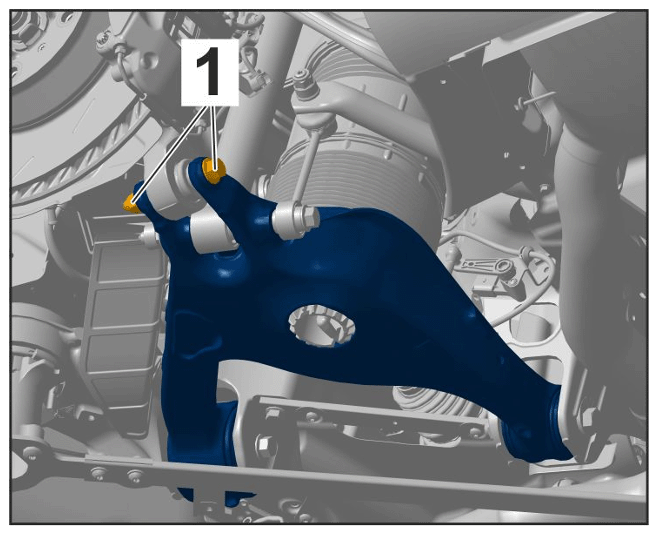

    G15857832Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for trailing arm on wheel bearing housing

    Information

    • Loosen or fit nut on the trailing arm using the specified tools.
  2. Carefully press up the rear exhaust pipe -1-  using > VAS 6931 - transmission and engine jack-2-  and a wooden block -3-  in order to position the eccentric screw -4-  of the trailing arm.

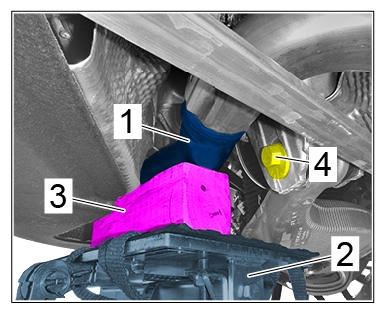

    G15857833Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressing up exhaust pipe on silencer

  3. Fit nuts on the trailing arm using the tools shown.

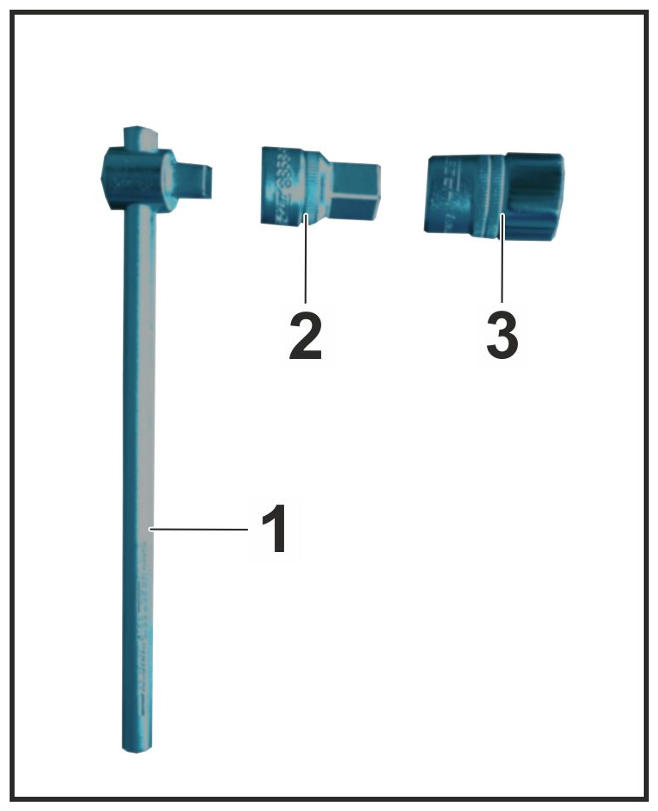

    G15857834Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Arrangement of tools

    1 Cross handle, 3/8-inch
    2 Adapter, 3/8-inch to 1/2-inch
    3 Socket
  4. Install threaded joints securing trailing arm to rear axle housing (do not tighten!).

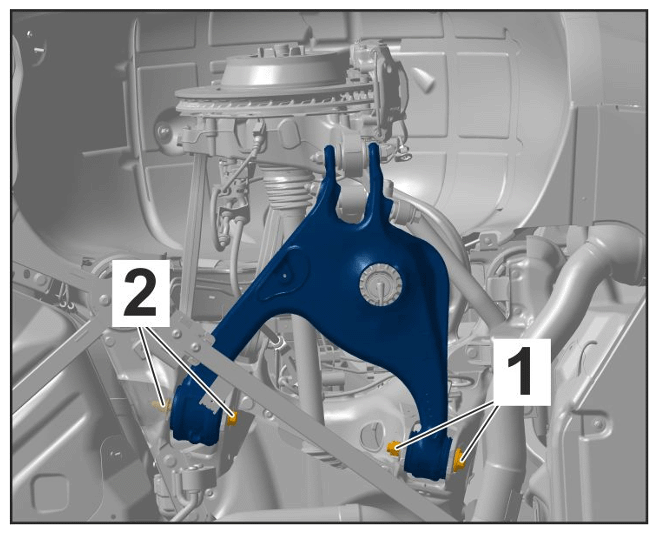

    G15857835Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for trailing arm on rear axle housing

    1. 4.1 Install threaded joint -2-  .
    2. 4.2 Install eccentric threaded joint -1-  .
  5. Install threaded joint -1-  for trailing arm, shock absorber and connecting link (do not tighten!).

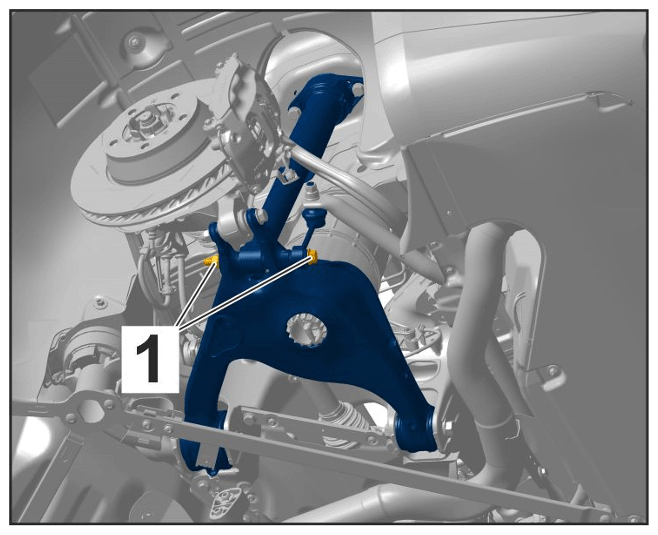

    G15857836Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for trailing arm with shock absorber and connecting link

    WARNING: Wheel bearing housing raised incorrectly
    • Risk of crushing
    • Risk of damage to components

      → Wear personal protective gear.

      → Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

    Information

    Threaded joints must only be tightened in zero position to prevent warping in the bearings.

  6. Tighten threaded joints in zero position.
    1. 6.1 Lift the wheel bearing housing using > VAS 6931 - transmission and engine jack  as far as required -Arrow-  until the lower trailing arm is horizontal > Zero position
      G15857837Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Zero position

    2. 6.2 Tighten threaded joint securing trailing arm to wheel bearing housing -1-  > Initial tightening 70 Nm (52 ftlb.)  > Final tightening torque angle + 180°
    3. 6.3 Tighten threaded joint securing trailing arm to rear axle housing -2-  > Initial tightening 70 Nm (52 ftlb.)  > Final tightening torque angle + 180°
    4. 6.4 Tighten eccentric threaded joint securing trailing arm to rear axle housing -1-.  > Tightening torque 160 Nm (118 ftlb.)
    5. 6.5 Tighten threaded joint securing trailing arm, shock absorber and connecting link -1-.  > Initial tightening 70 Nm (51.6 ftlb.)  > Final tightening torque angle + 180°
  7. Secure holder for level sensor -2-  to the trailing arm.
    G15857838Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for level sensor holder

    1. 7.1 Tighten screw -1-  > Initial tightening 3 Nm (2 ftlb.)  > Final tightening + 45°
  8. Install control arm spoiler -2-  .

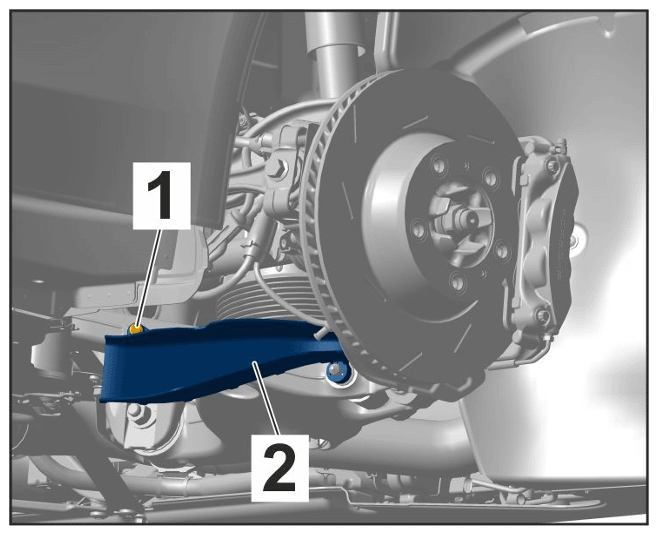

    G15857839Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control arm spoiler on trailing arm

    1. 8.1 Fit lug of control arm spoiler on the shock absorber threaded joint.
    2. 8.2 Tighten screw -1-  > Tightening torque 8 Nm (6 ftlb.)
