Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove rear hub cap using > 9229/1 - puller hook  and loosen axle nut -1 -  on both sides of the vehicle before raising the vehicle. Operate the brake while doing this (2nd mechanic required).

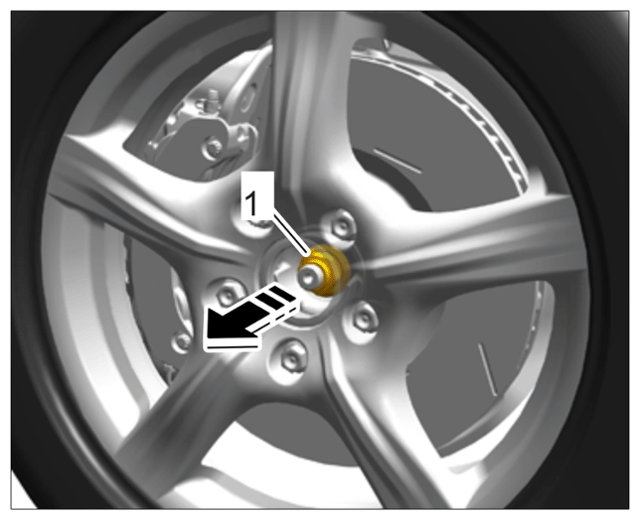

    G15857784Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Axle nut (front axle shown)

  2. Remove final drive.

    > 390119 REMOVING AND INSTALLING FINAL DRIVE

  3. Remove rear axle housing.

    > 420519 REMOVING AND INSTALLING REAR AXLE HOUSING
