Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install rear cardan shaft.
> 393519 REMOVING AND INSTALLING REAR CARDAN SHAFT
Install exhaust system.
> 260119 Removing and installing exhaust system - information on "REMOVING "

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

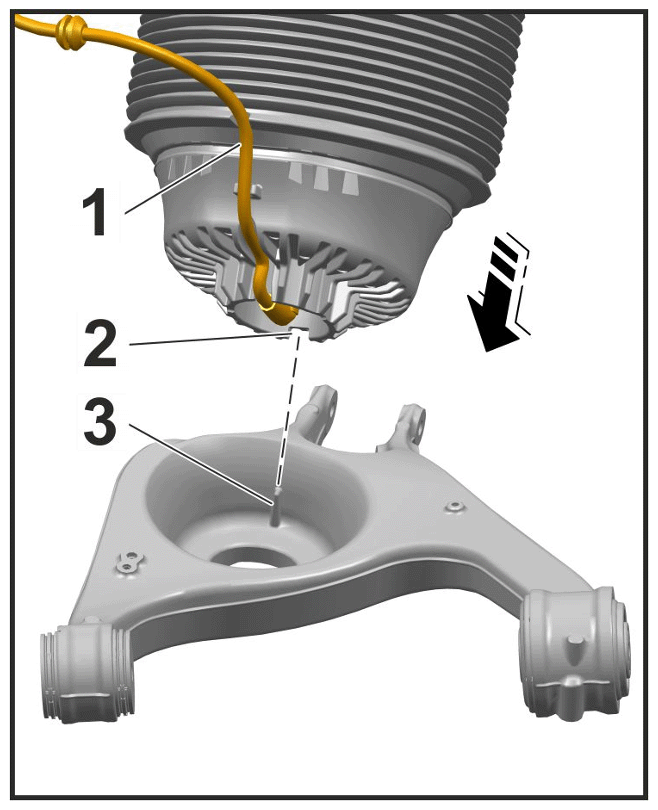

Positioning air spring bellows in trailing arm
- The air spring bellows may only be filled if it was already positioned correctly in the trailing arm (to do this, lift lower trailing arm using lifting equipment) > Positioning air spring bellows in trailing arm.
- Align air spring bellows with groove -2- at the lug -3- of the trailing arm.
Install coil spring or inflate air spring.
> 427219 REMOVING AND INSTALLING COIL SPRING

> 430117 BLEEDING AND FILLING THE LEVELLING SYSTEM
Install brake calliper on both sides of the vehicle.
> 474119 REMOVING AND INSTALLING REAR BRAKE CALLIPER

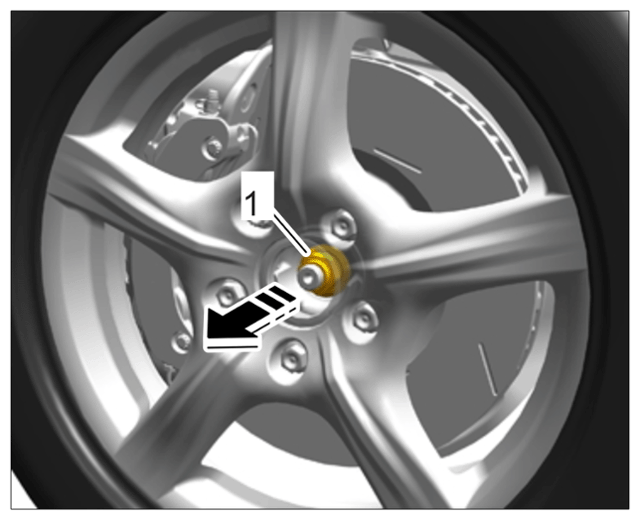

If the rear axle housing was replaced: Tighten axle nut -1- on both sides of the vehicle. Operate the brake while doing this (2nd mechanic required) > Tightening torque 460 Nm (340 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Axle nut (front axle shown)
Applies only to vehicles with PDCC: Start the 48 V vehicle electrical system.
> 270703 DISCONNECTING AND COMMISSIONING 48 V SYSTEM
Only for PHEV vehicles: Fill in coolant and bleed the cooling system.
> 193817 DRAINING AND FILLING COOLANT (INCLUDES BLEEDING)
Perform suspension alignment.
> 449503 PERFORMING FRONT AND REAR SUSPENSION ALIGNMENT
