Removing Rear Axle Housing
- Remove protective plate on the rear axle housing bearing -1-
on both sides of the vehicle.
Mounting for protective plate
- 1.1 Unscrew fastening screws -2- .
- Only for vehicles with PDCC:
Expose PDCC wire harness.
- 2.1 Disconnect PDCC wire harness at the PDCC control unit (observe specified sequence!).

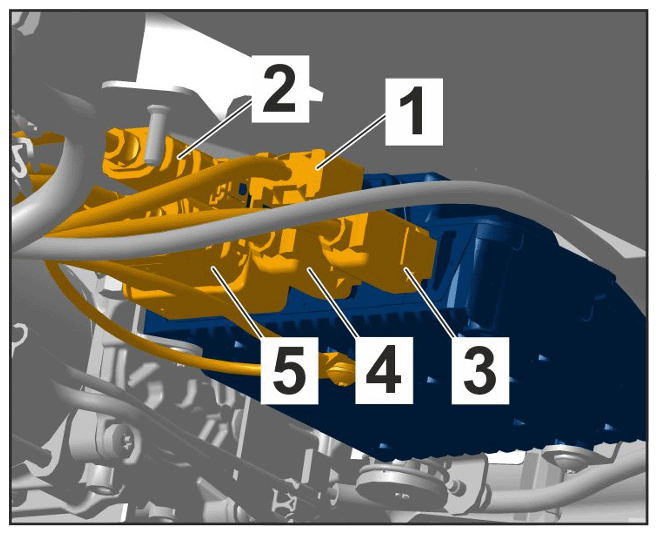

Sequence for disconnecting the electric plug connections
- 2.1.1 Release and disconnect electric plug connections from the PDCC control unit in the sequence -1 to 5- .

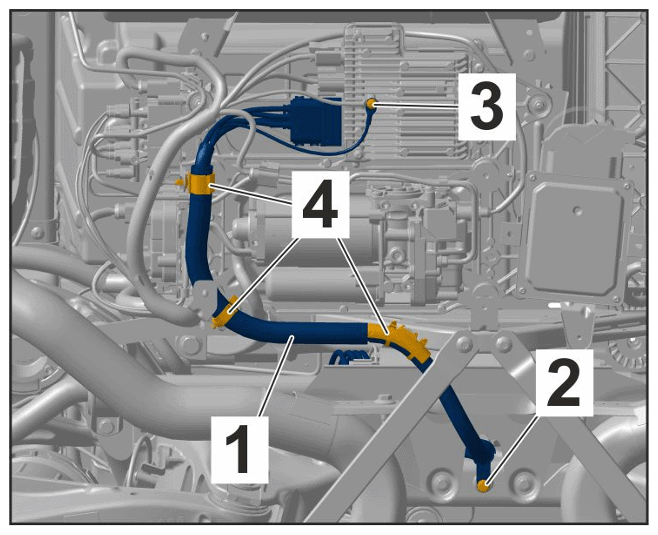

- 2.2 Unscrew fastening screw on the rear axle housing -2- .
- 2.3 Unscrew fastening screw for ground line -3- .
- 2.4 Remove PDCC wire harness from the brackets -4-
.
Mounting for PDCC wire harness
- 2.5 Disconnect PDCC wire harness -1-
at the rear axle housing.
Mounting for PDCC wire harness on rear axle housing
- 2.5.1 Unscrew fastening screw -2- .
- 2.1 Disconnect PDCC wire harness at the PDCC control unit (observe specified sequence!).
- Only for vehicles with rear axle steering:
Release and disconnect electric plug connections -1-
on servo motor for rear axle steering -2-
.
Electric plug connections for rear axle steering
- Only for vehicles with rear differential lock:
Disconnect electric plug connection from servo motor for rear-differential lock.

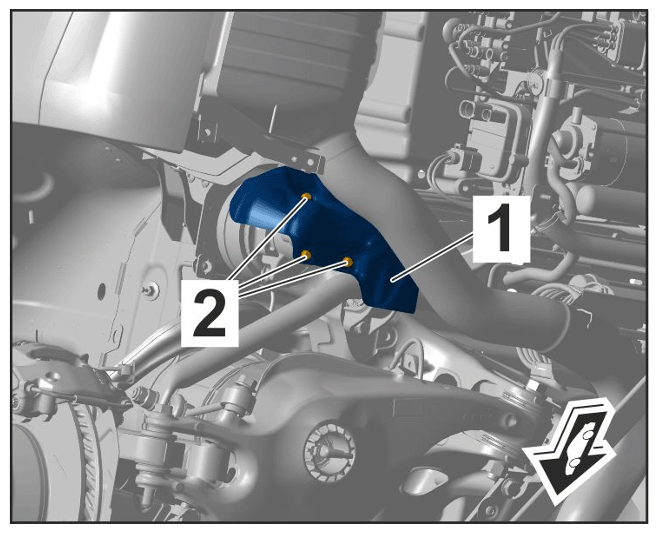

- 4.1 Remove protective plate for drive shaft at the left -1-
.
Mounting for protective plate for drive shaft at the left
- 4.1.1 Unscrew fastening screws -2- .

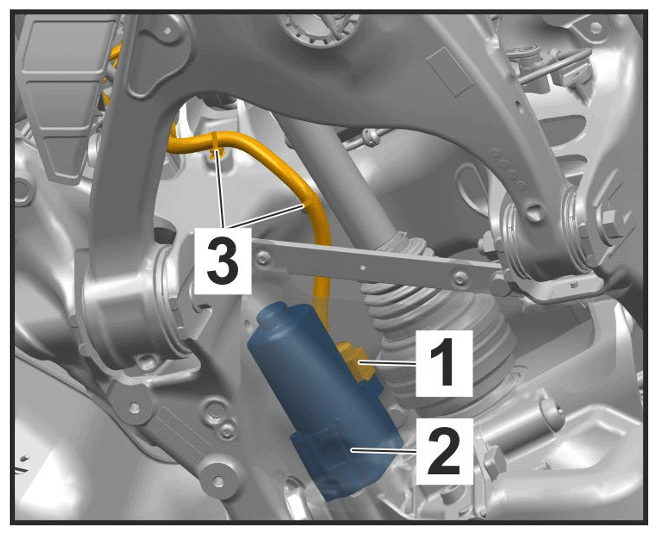

- 4.2 Release and disconnect electric plug connection -1- on servo motor for rear-differential lock -2- and remove line from the brackets -3- .
Electric plug connection for servo motor for rear-differential lock
- 4.1 Remove protective plate for drive shaft at the left -1-
.
- Only for vehicles with air suspension:

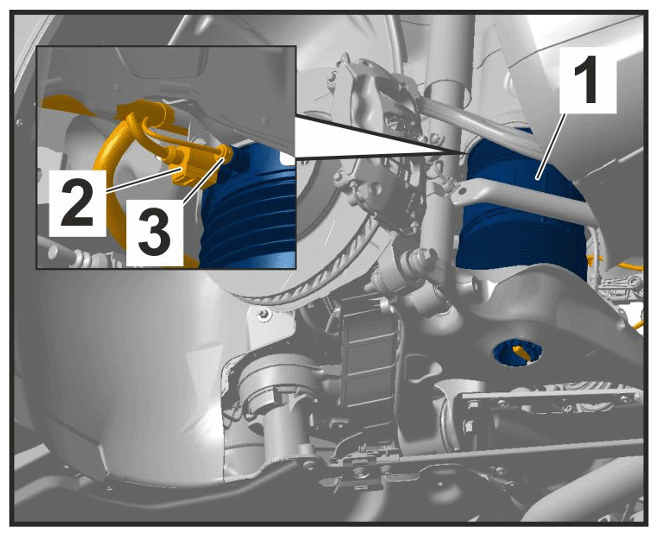

Disconnect plug connections on air spring bellows -1-
and from air spring bellows to the body.
Plug connections on air spring bellows
- 5.1 Release and disconnect electric connector -2-
.CAUTION: Escaping residual air
- Risk of eye injuries
→ Wear protective goggles.
- Risk of eye injuries
- 5.2 Slowly unscrew Voss threaded joint for the air line -3- . Do not unscrew Voss threaded joint fully until residual pressure has escaped.
- 5.3 Unclip air spring bellows at the body mounting points.
Clip -1- must always be replaced following removal and may therefore be damaged irreparably during removal.

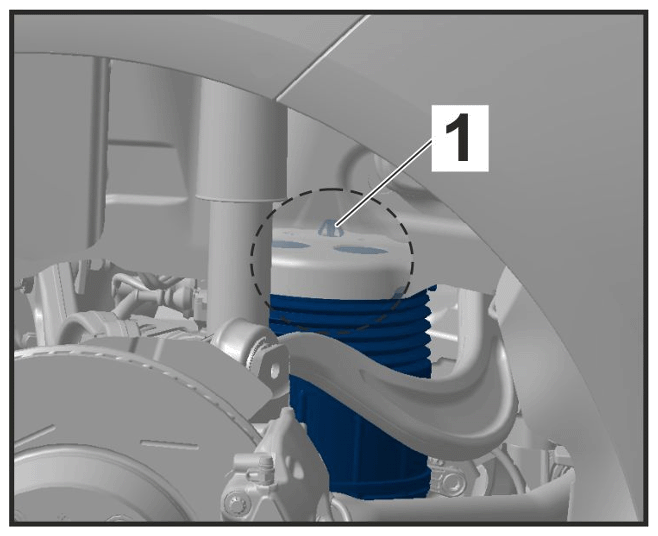

Upper clip on air spring bellows
- 5.3.1 Pull the air spring bellows on one side down slightly until the clip -1- is accessible.
- 5.3.2 Loosen clip connection -1- .
- 5.1 Release and disconnect electric connector -2-
.
- Only for PHEV vehicles:

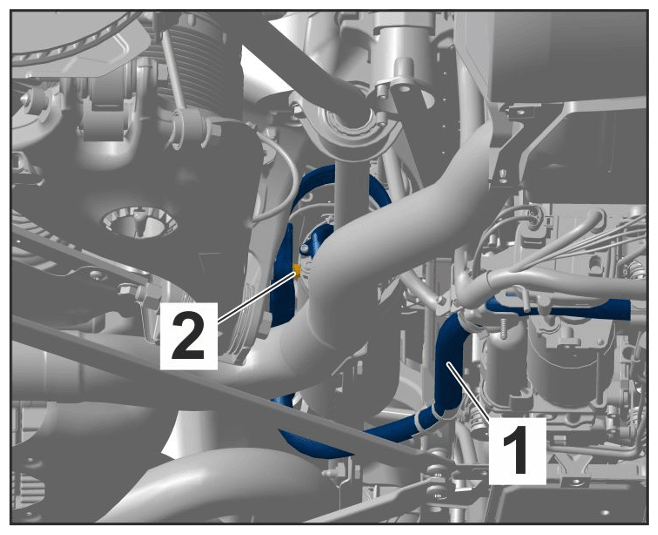

Expose coolant lines -1 and 2-
.

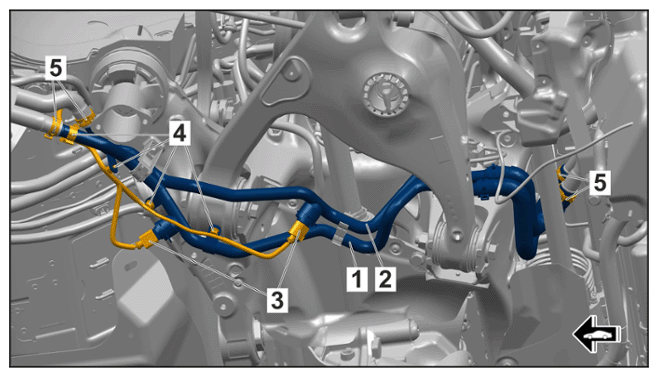

Mounting for coolant lines (PHEV only)
- 6.1 Release and disconnect electric connector -3- .
- 6.2 Loosen brackets -4-
.WARNING: Hot fluid
- Danger of scalding
→ Avoid contact with hot fluid.
→ Wear personal protective gear.
Information
After disconnecting hoses, close off all openings immediately using commercially available rubber stoppers.
When fitting parts, do not remove stoppers until shortly before installation.
- Danger of scalding
- 6.3 Open clamps using > VAS 6889 - Spring Band Clamp Pliers-5- and disconnect coolant hoses.
- Release and disconnect electric connector -2-
on both sides of the vehicle from the rear angle sensor for HBA -1-
.

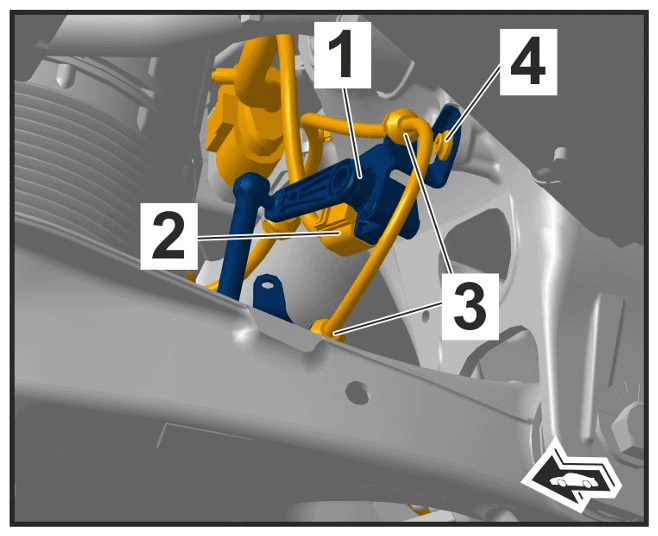

Mounting for holder for rear angle sensor for headlight beam adjustment at the top
- Release and disconnect electric plug connection -2-
on the TPM control unit -1-
.
Electric plug connection for RDK control unit

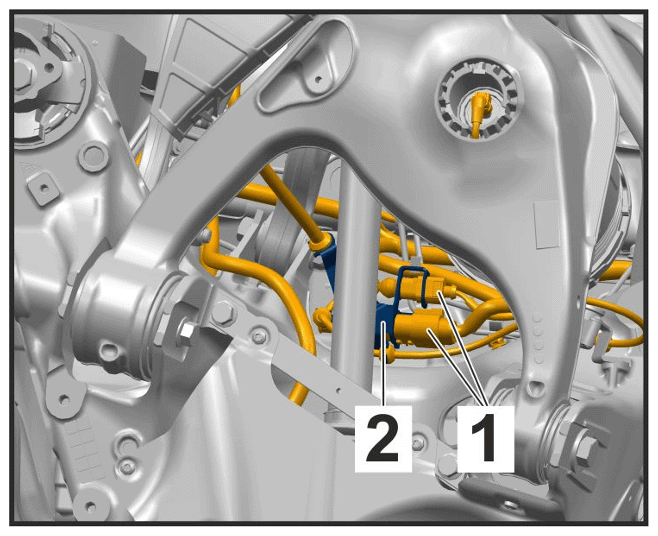

- Release and disconnect electric plug connections -1-
on both sides of the vehicle and remove them from holder -2-
. Disconnect the line at the vehicle from the brackets on the rear axle housing.
Electric plug connections on rear axle housing
- Remove heat insulation in luggage compartment pan -1-
.

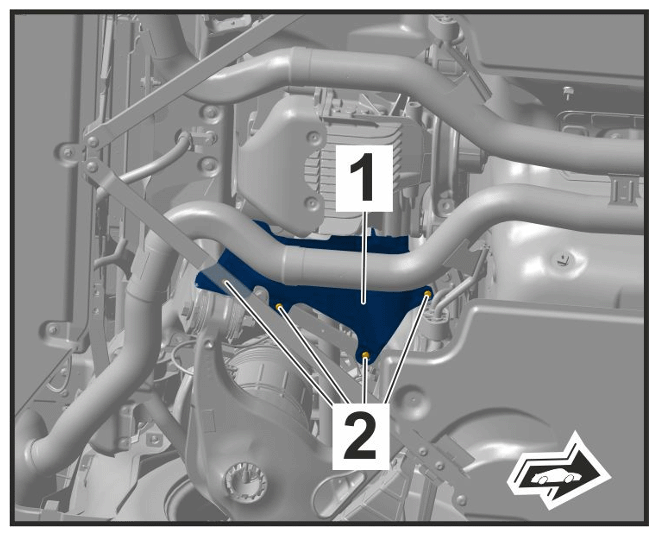

Mounting for heat insulation in luggage compartment pan
- 10.1 Unscrew fastening screws -2- .

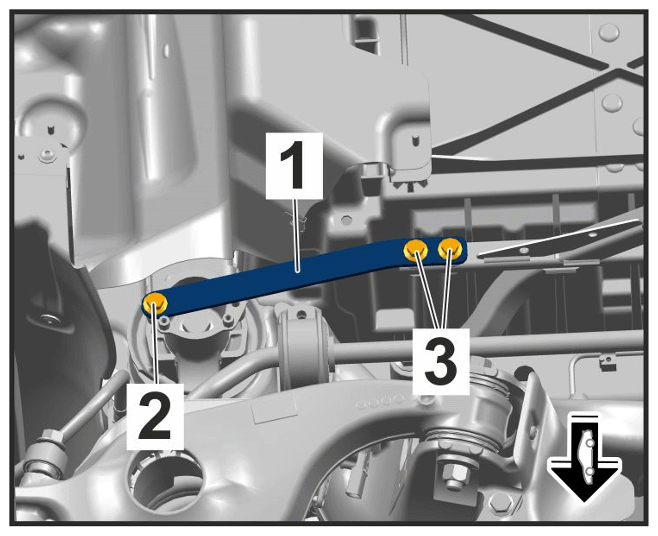

- Remove rear-axle strut -1-
.

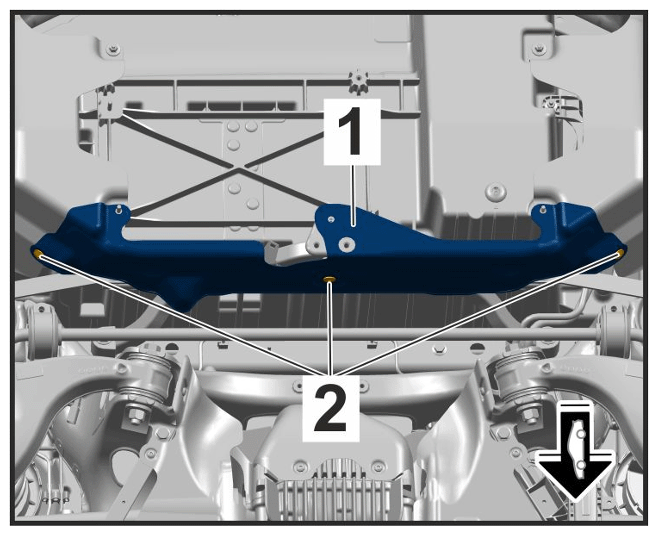

Mounting for rear-axle strut
- 11.1 Unscrew fastening screws -2 and 3- .
- If installed:
Unscrew fastening screws -1-
for vibration balancer.
Mounting for vibration balancer

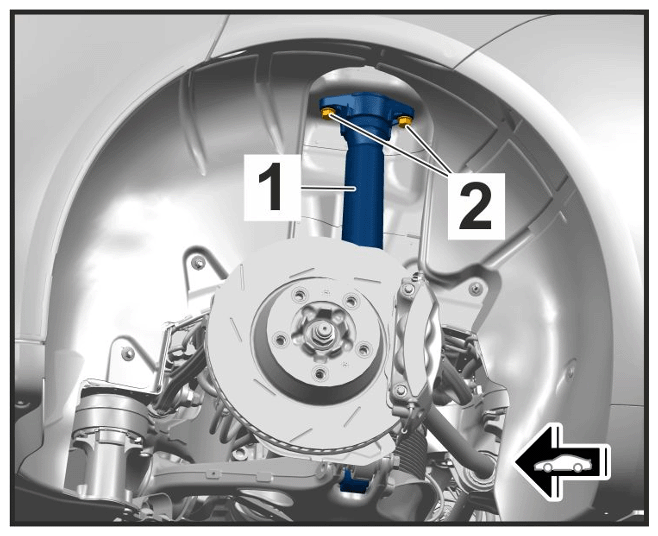

- Remove shock absorber -1-
on both sides of the vehicle from the body.
Mounting for shock absorber on body
- 13.1 Unscrew fastening screws -2- .
- Raise the rear axle housing using > VAS 6832 - Master Gear unit elevating platform
and > VAS 6832/7 - Assembly fixture - Panamera G2.
- 14.1 > VAS 6832/7 - Assembly fixture - Panamera G2 must be prepared in such a way that only the assembly drivers for the rear axle are fitted (see "HA" (rear axle) marking on > VAS 6832/7 - Assembly fixture - Panamera G2).
- 14.2 Position elevating platform > VAS 6832 - Master Gear unit elevating platform with > VAS 6832/7 - Assembly fixture - Panamera G2 under the vehicle and adjust the height of the assembly drivers so that the rear axle housing can be raised evenly.

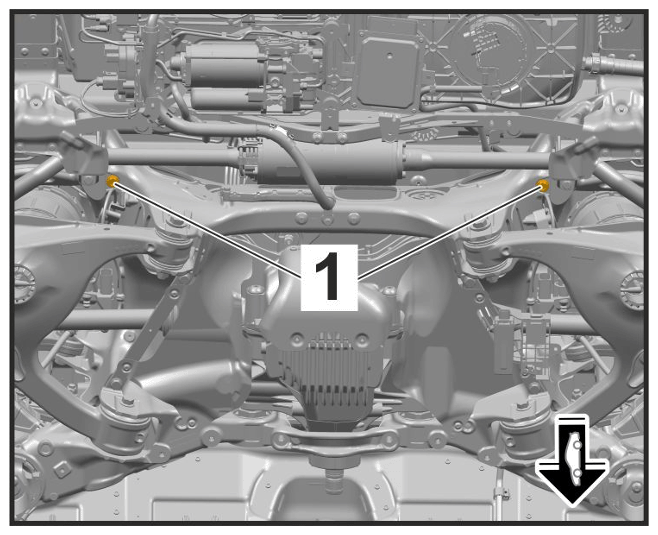

- 14.3 Carefully guide assembly drivers into the jacking points -1-
on the rear axle housing.
Jacking points on rear axle housing

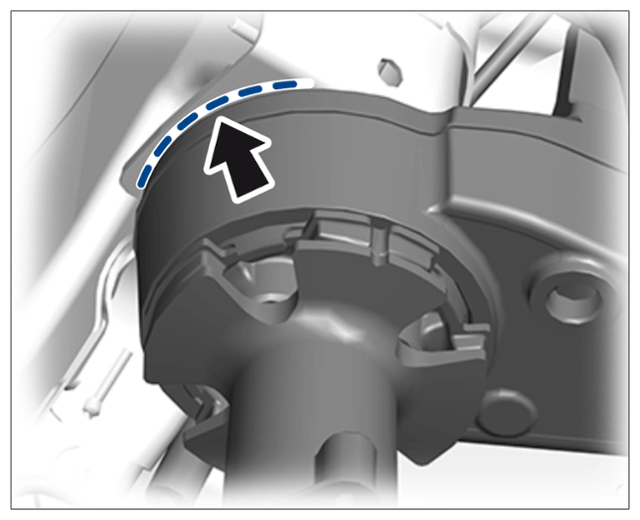

- 14.4 Mark the position of the rear axle housing (at least at the 2 front bolting points on the rear axle housing) on the body. This will give you a rough idea of the correct position for re-installation. Marking (example)
Marking (example)

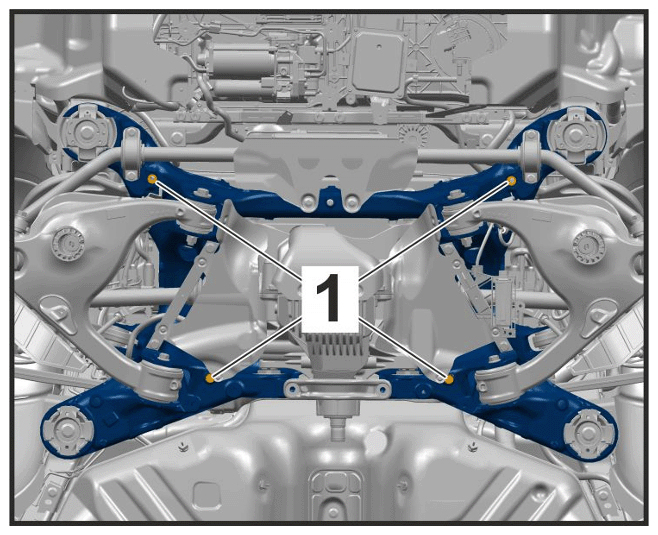

- 14.5 Unscrew fastening screws -1-
from the rear axle housing.

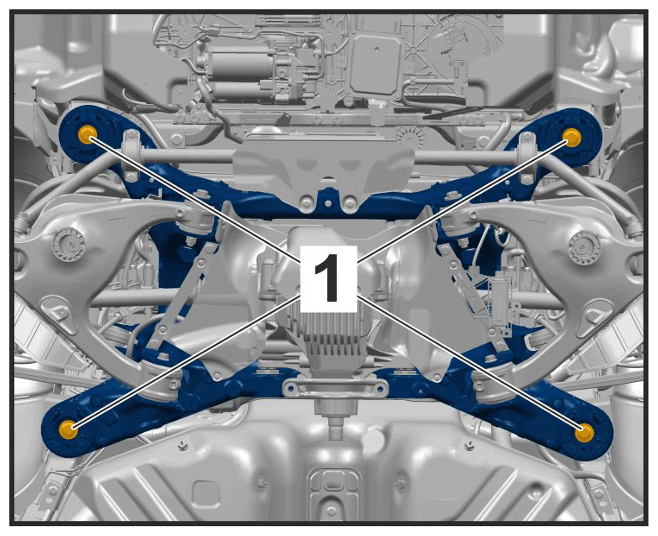

Mounting for rear axle housing
- 14.6 > VAS 6832 - Master Gear unit elevating platform

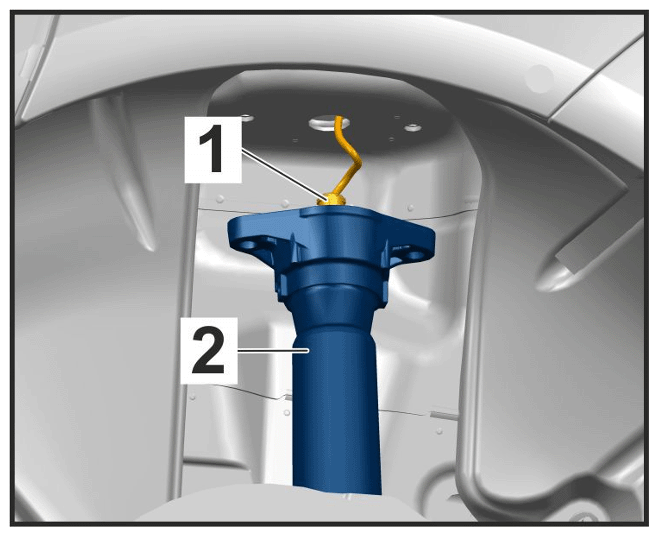

must now be lowered by approx. 5 cm. Then release and disconnect electric plug connection for PASM -1-
on the shock absorber -2-
at both sides of the vehicle.

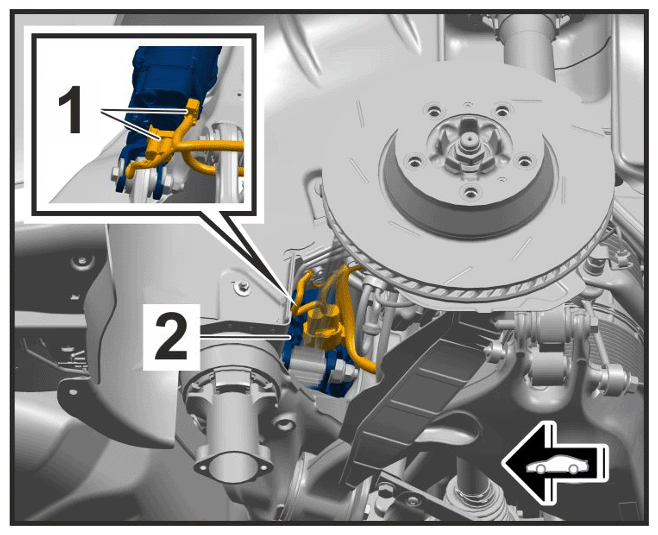

Electric plug connection for PASM on shock absorber
- 14.7 > VAS 6832 - Master Gear unit elevating platform must be lowered slowly.
