Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Only for vehicles with PDCC: Disconnect 48-volt vehicle electrical system.
> 270703 DISCONNECTING AND COMMISSIONING 48 V SYSTEM
If you are replacing the rear axle housing: Remove the relevant hub cap using > 9229/1 - puller hook and loosen axle nut -1- on both sides of the vehicle before raising the vehicle. Operate the brake while doing this (2nd mechanic required).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

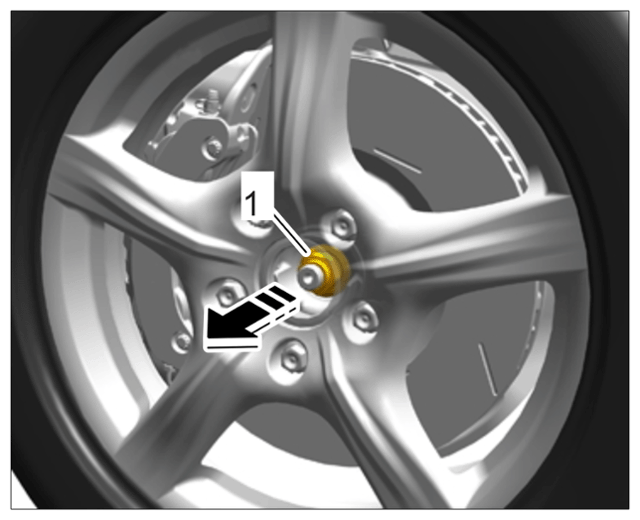

Axle nut (front axle shown)
Remove brake calliper on both sides of the vehicle and hang it at a suitable place in the wheel housing.
> 474119 REMOVING AND INSTALLING REAR BRAKE CALLIPER
Remove coil spring or release air from air spring.
> 427219 REMOVING AND INSTALLING COIL SPRING

> 430117 RELEASING AND FILLING THE LEVELLING SYSTEM
Remove exhaust system.
> 260119 Removing and reinstalling exhaust system - information on "REMOVING "
Remove rear cardan shaft.
> 393519 REMOVING AND INSTALLING REAR CARDAN SHAFT
