Ignition Coils And Sensors

WARNING: This page is about a different variant/trim than selected.

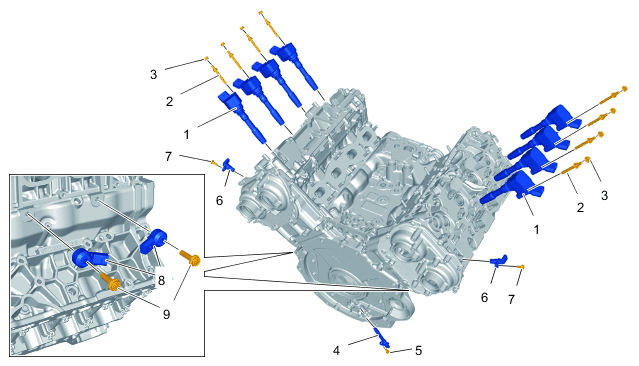

Fig 1: Ignition Coils And Sensors Components Location With Torque Specification - V8 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ignition coils and sensors - V8 Turbo

1	Ignition coils
2	Double screw, M6 x 45-M6 x 12 > Tightening torque 9 Nm (6.5 ftlb.) (6.6 ftlb.)
3	Nut > Tightening torque 9 Nm (6.5 ftlb.) (6.6 ftlb.)
4	Crankshaft pulse sender
5	Screw, M6 x 16 > Tightening torque 9 Nm (6.5 ftlb.) (6.6 ftlb.)
6	Camshaft sensor
7	Screw, M6 x 16 > Tightening torque 9 Nm (6.5 ftlb.) (6.6 ftlb.)
8	Knock sensor
9	Screw, M8 x 30 > Tightening torque 30 Nm (22 ftlb.) (22.1 ftlb.)
Not shown	Spark plug > Tightening torque 23 Nm (17 ftlb.) (17 ftlb.)
