Heat Shield On Tunnel

WARNING: This page is about a different variant/trim than selected.

Installation overview of heat shield on tunnel:

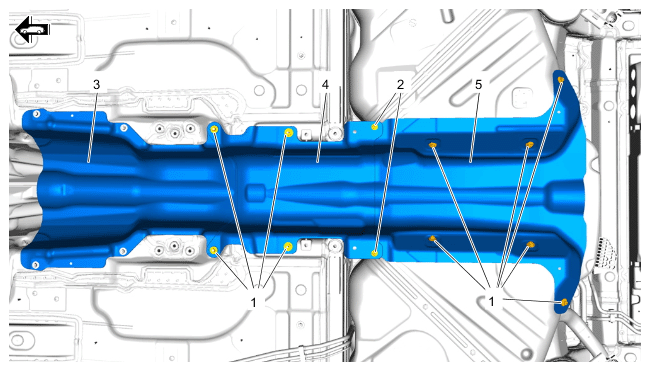

Fig 1: Heat Shield On Tunnel Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on tunnel

1	Speed nut > Tightening torque 2.5 Nm (1.75 ftlb.)
2	Screws > Tightening torque 2.5 Nm (1.75 ftlb.)
3	Heat shield on tunnel, front
4	Heat shield on tunnel, centre
5	Heat shield on tunnel, rear

Heat shield for rear silencer:

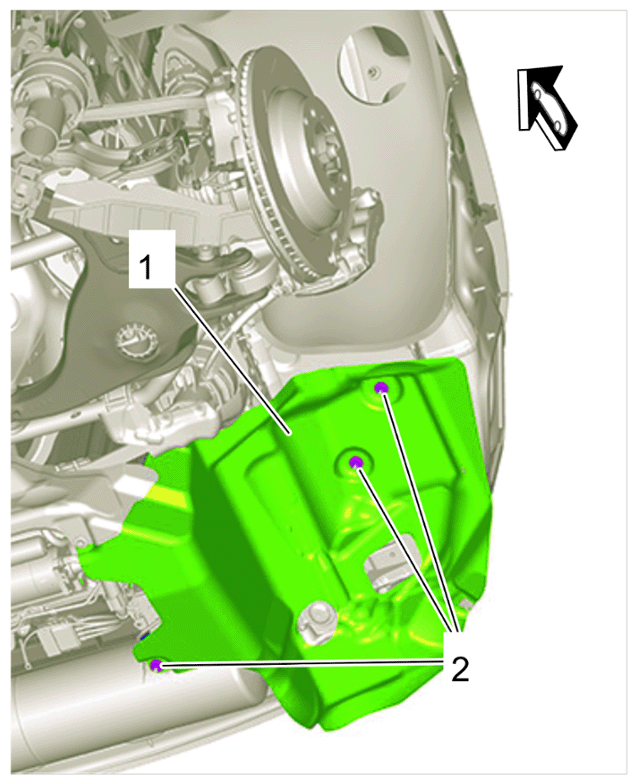

Fig 2: Heat Shield For Rear Silencer Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield for rear silencer

1	Heat shield
2	Speed nut/plastic nut > Tightening torque 2.5 Nm (1.75 ftlb.)
