Catalytic Converter Heat Shield (Isolite)

WARNING: This page is about a different variant/trim than selected.

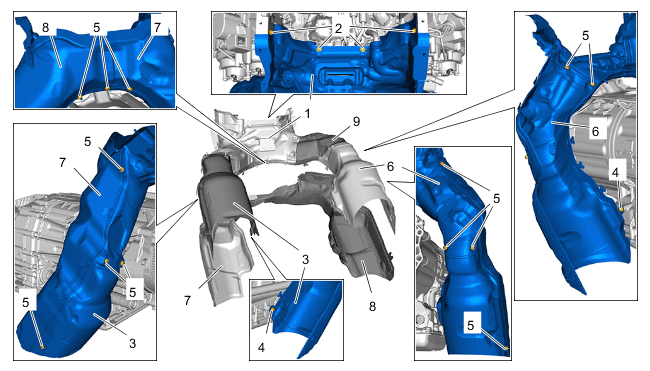

Fig 1: Catalytic Converter Heat Shield Components Location With Torque Specification - V8 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Catalytic converter heat shield - V8 Turbo

1	Lower centre catalytic converter heat shield
2	Screws, M6 x 12 > Tightening torque 8 Nm (5.9 ftlb.)
3	Lower right catalytic converter heat shield
4	Screws, M8 x 16 > Tightening torque 20 Nm (14.8 ftlb.)
5	Screws, M6 x 12 > Tightening torque 8 Nm (5.9 ftlb.)
6	Lower left catalytic converter heat shield
7	Upper right catalytic converter heat shield
8	Upper left catalytic converter heat shield
9	Front lower left catalytic converter heat shield

Heat shield on catalytic converter and turbocharger:

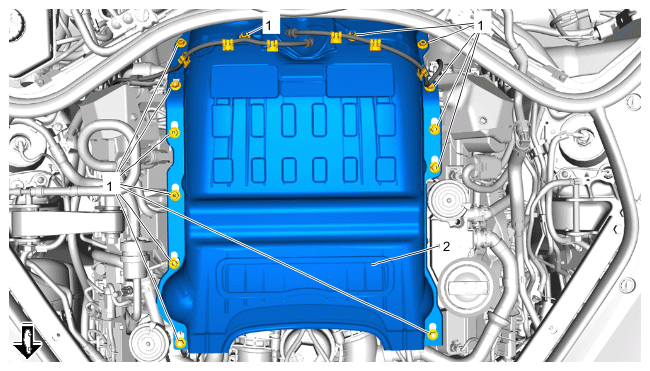

Fig 2: Heat Shield On Turbocharger Components Location With Torque Specification - V8 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on turbocharger - V8 Turbo

1	M6 nuts > Tightening torque 9 Nm (6.6 ftlb.)
2	Shield turbocharger
3	Nuts > Tightening torque 5 Nm (3.7 ftlb.)
