HV Comparison Sample

The Comparison Sample serves as a guide for the technician during visual checks to be performed during repairs on the HV battery. The Comparison Sample is explicitly not a limit sample. In other words, the Good/Bad pictures that are shown are designed to help the high voltage expert. It is up to the high voltage expert to assess the re-usability of the relevant parts based on his qualifications.

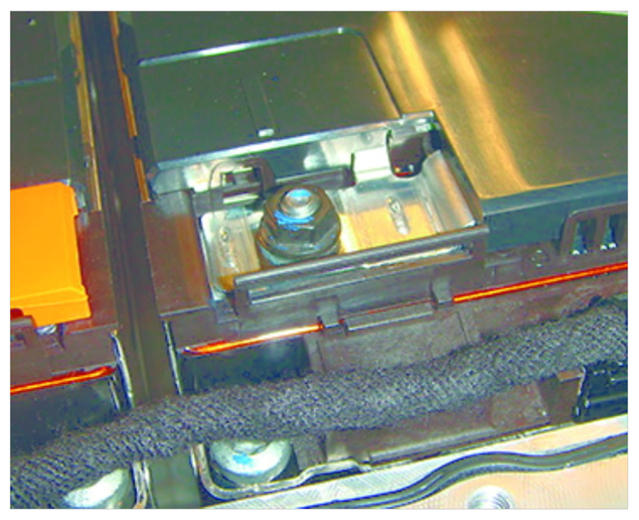

1. Module connector OK

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Module connector OK

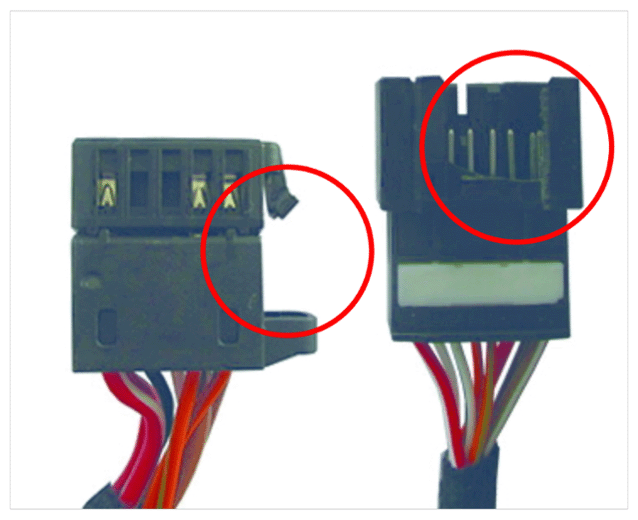

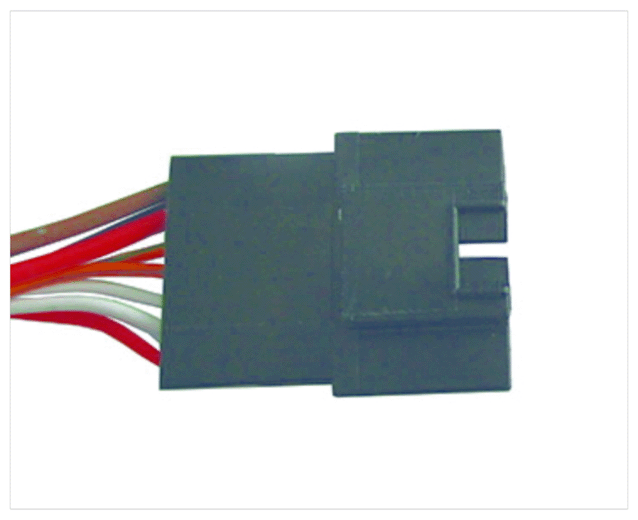

2. Module connector with damaged or no insulation: not OK

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Module connector not OK

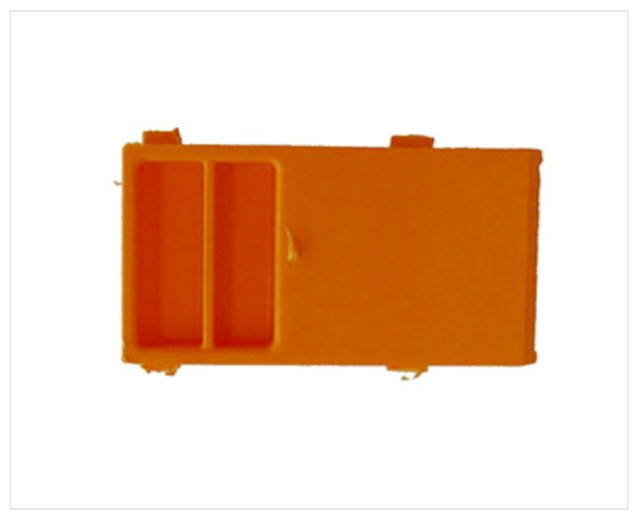

3. Module connector cap OK

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Module connector cap OK

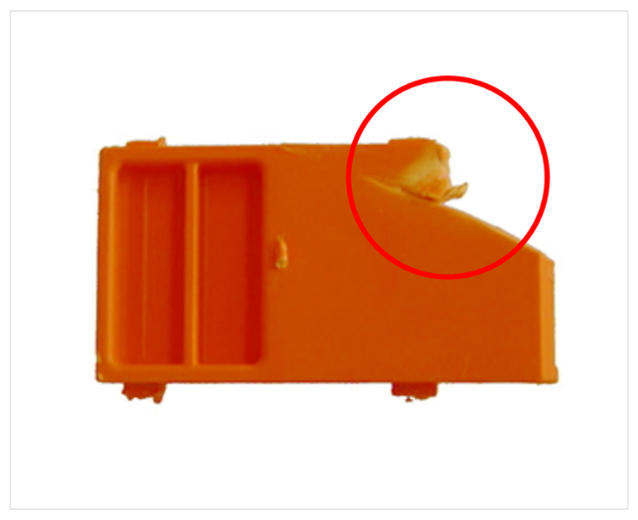

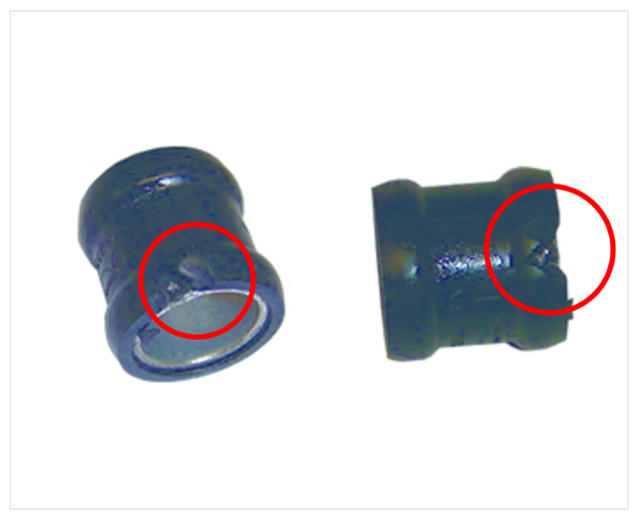

4. Module connector cap not OK

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Module connector cap not OK

5. Connector housing OK

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Connector housing OK

6. Connector housing not OK

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Connector housing not OK

7. Sealing flange OK

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sealing flange OK

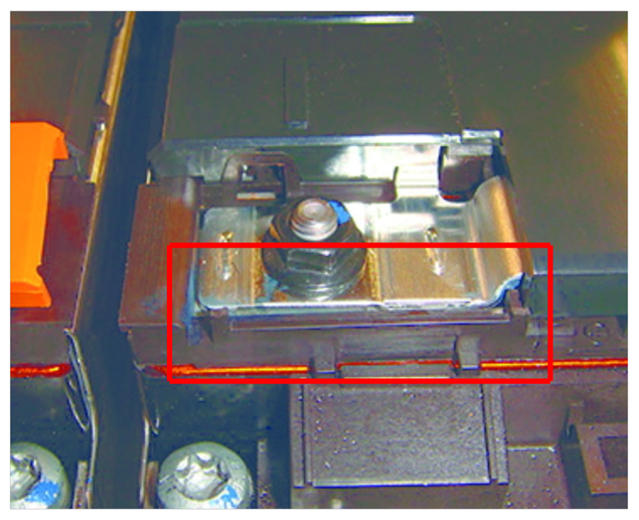

8. Sealing flange not OK

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sealing flange not OK

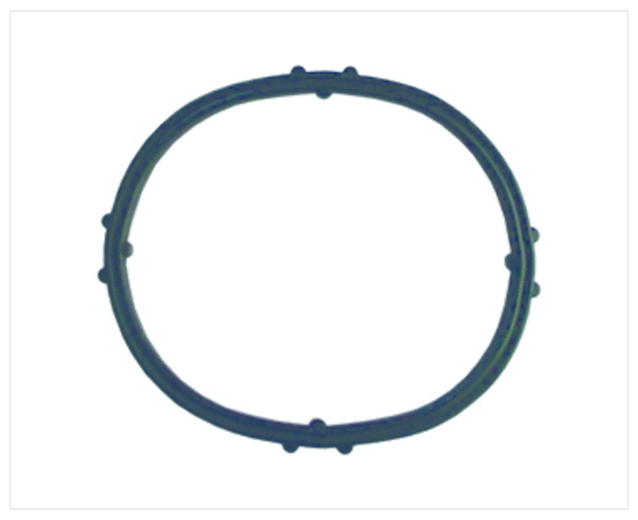

9. Sealing ring OK

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sealing ring OK

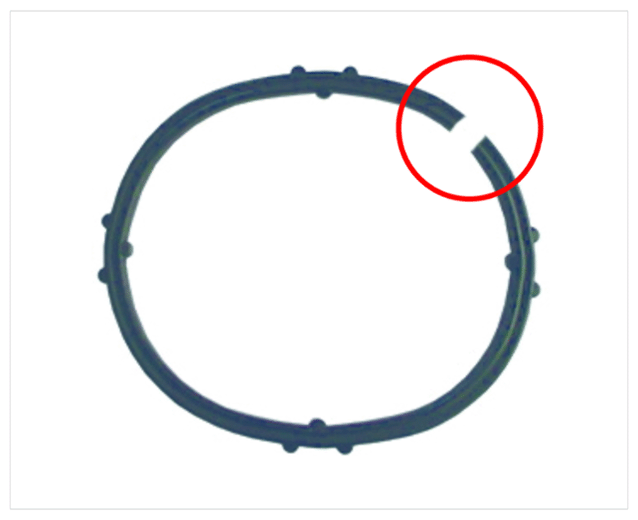

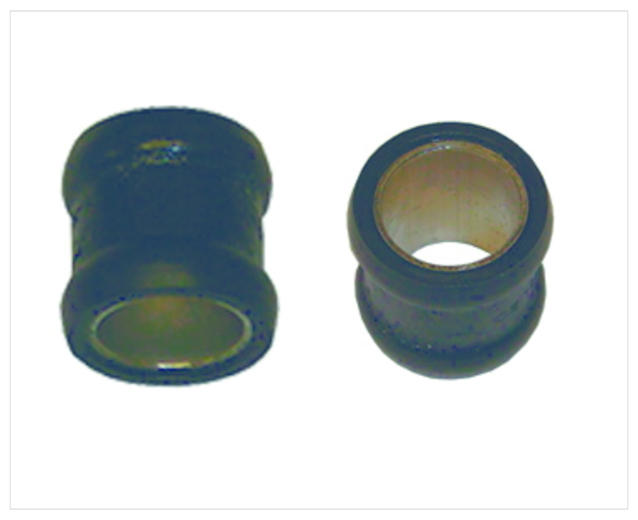

10. Sealing ring not OK

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sealing ring not OK

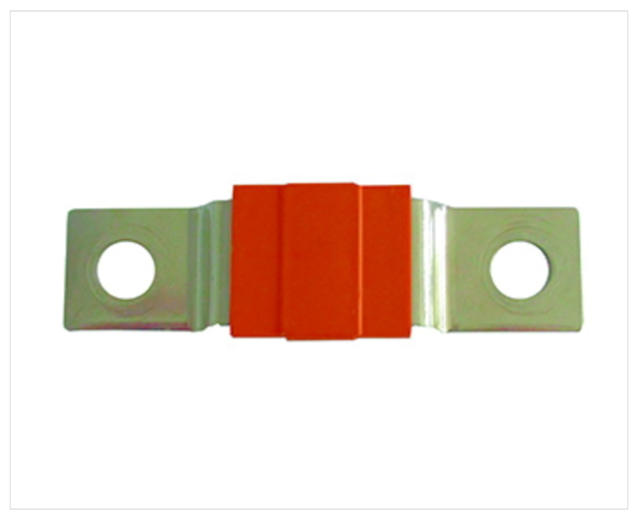

11. Bracket for module connector cap OK

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bracket for module connector cap OK

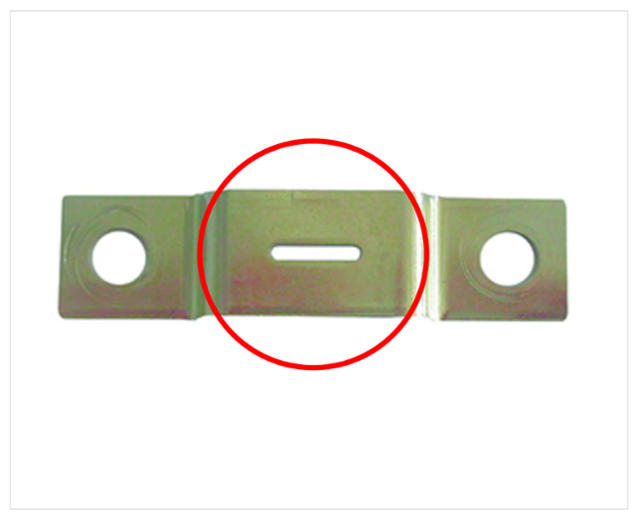

12. Bracket for module connector cap not OK

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bracket for module connector cap not OK
