Removing Leakage Diagnosis Module
WARNING: This page is about a different variant/trim than selected.
Information
The leakage diagnosis unit is only installed on USA vehicles.

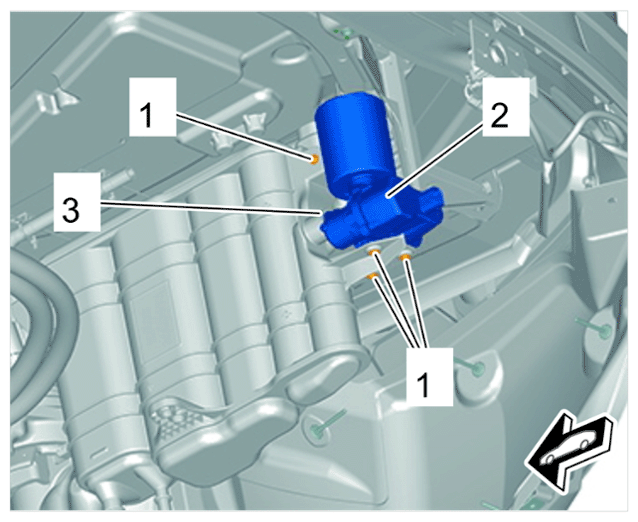

- Remove leakage diagnosis module -2-
.
- 1.1 Unscrew fastening screws -1-
.
- 1.2 Pull out leakage diagnosis module -2-
.
- 1.3 Replace seal -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Leakage diagnosis module
