Installing Carbon Canister

1. Installation is performed in reverse order to removal.
   1. 1.1 Observe tightening sequence -1, 2, 3-  for nuts on the carbon canister -4-  .

      Nuts on carbon canister, top > Tightening torque 6 Nm (4.5 ftlb.)

      Nut on carbon canister, bottom > Tightening torque 6 Nm (4.5 ftlb.)

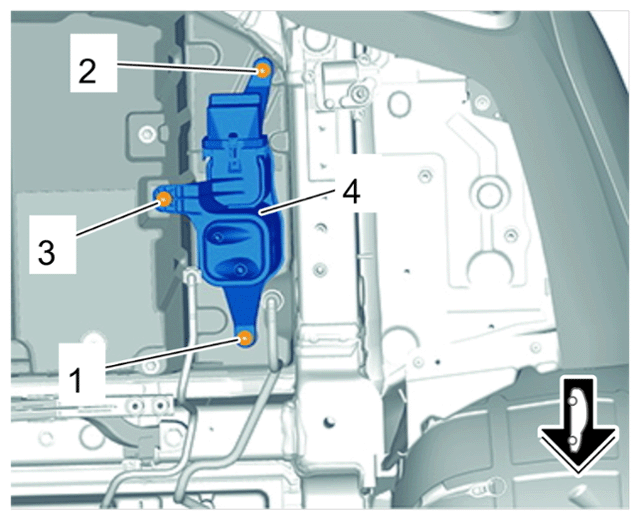

Fig 1: Carbon Canister Nuts Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for fastening nuts on carbon canister
