Camshaft Control
WARNING: This page is about a different variant/trim than selected.

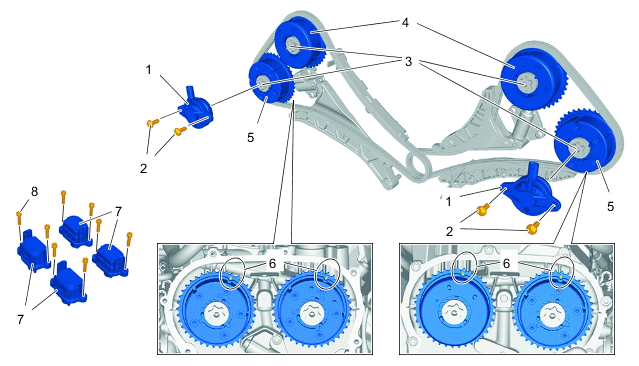

Camshaft control
| 1 | Actuator for camshaft controller |
| 2 | Screw, M6 x 16 > Tightening torque 9 Nm (6.5 ftlb.) |
| 3 | Central screw for camshaft controller/replace O-ring > Initial tightening 27 Nm (20 ftlb.) > Final tightening + 30 Nm (22 ftlb.) > Final tightening + 35° |
| 4 | Actuator for outlet camshaft |
| 5 | Actuator for intake camshaft |
| 6 | Installation marking/depending on type --> See Workservice information! |
| 7 | Valve lift adjustment |
| 8 | Screws, M5 x 20 > Tightening torque 5 Nm (3.5 ftlb.) |
| Tightening sequence for central screw for camshaft controller (item 3) | ||
|---|---|---|
| Result: | Cylinder bank: | Camshaft: |
| 1. | Bank 2 | Outlet |
| 2. | Bank 2 | Intake |
| 3. | Bank 1 | Intake |
| 4. | Bank 1 | Outlet |
