Installing The Cylinder Head Cover

Information

The > T40331 - camshaft clamp  must be fitted before removal and installation.

> WM, 158420 REMOVING AND INSTALLING CAMSHAFT ACTUATORS (INCLUDES SETTING TIMING)

Information

Fitting and sealing components using liquid sealant.

• Clean sealing faces to remove all traces of residual sealant.
• Sealing faces must be free of grease and oil.
• Clean sealing faces with primer Loctite 7515.
• Use liquid sealant Loctite 5970-BM.

1. Apply Loctite 5970-BM -1-  liquid sealant to cylinder head.
   1. 1.1 Install the cylinder head cover within five minutes of applying the liquid sealant.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

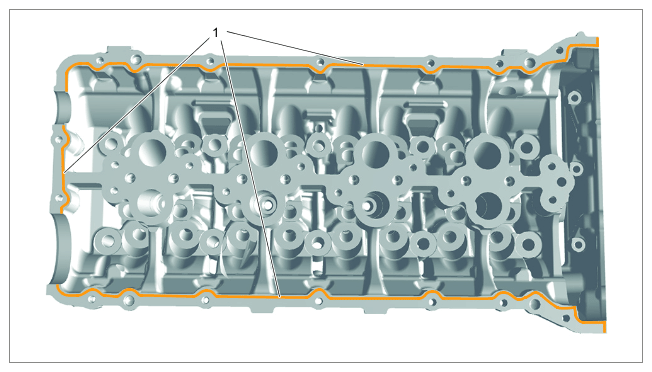

   Applying sealant to cylinder head

   1	Applying sealant to cylinder head

   Information

   If the fitting bore on the cylinder head cover is dirty/corroded or if tolerances are unfavourable, the > T40116 - locating pins  may be very difficult to insert.

   In this case, the fitting bore can be expanded carefully with a commercially available 8 mm H7 reamer  . Protect adjacent components from chips.

   Information

   Before fitting the cylinder head cover, check that the rocker arms are aligned correctly.

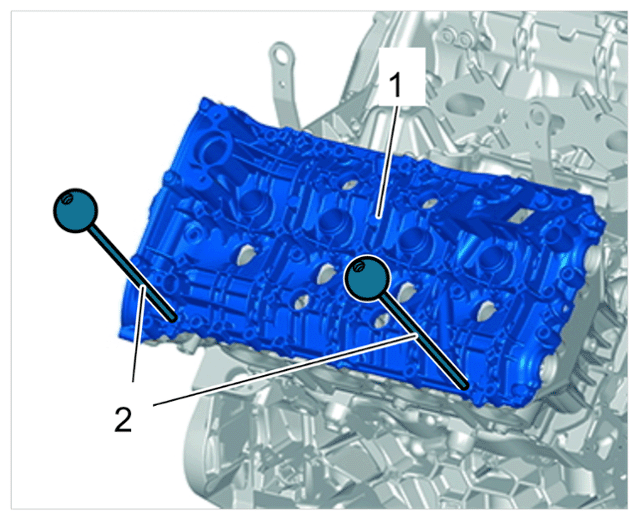

2. Fit and align cylinder head cover -1-  on the cylinder head with > T40116 - locating pins-2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Locking cylinder head cover in place

3. Fit cylinder head cover.
   1. 3.1 Fit screws on the cylinder head cover uniformly and tighten according to the specified tightening sequence.

      > Initial tightening 9 Nm (6.5 ftlb.)

   2. 3.2 > T40116 - Locating pins  must now be pulled off.
   3. 3.3 Close off bearing tunnels with rubber caps. Exception: Left intake side with brake booster vacuum pump.

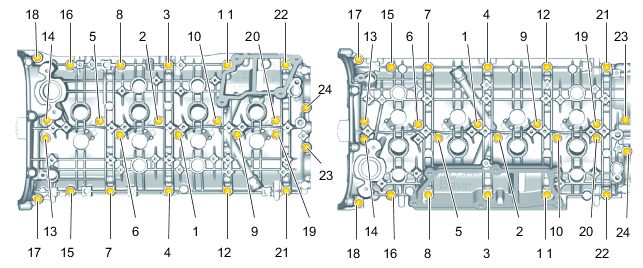

   Fig 1: Cylinder Head Cover Screws Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tightening sequence for cylinder head cover

   1-22	Tightening sequence for cylinder head cover at the left and right
