General Information

Information

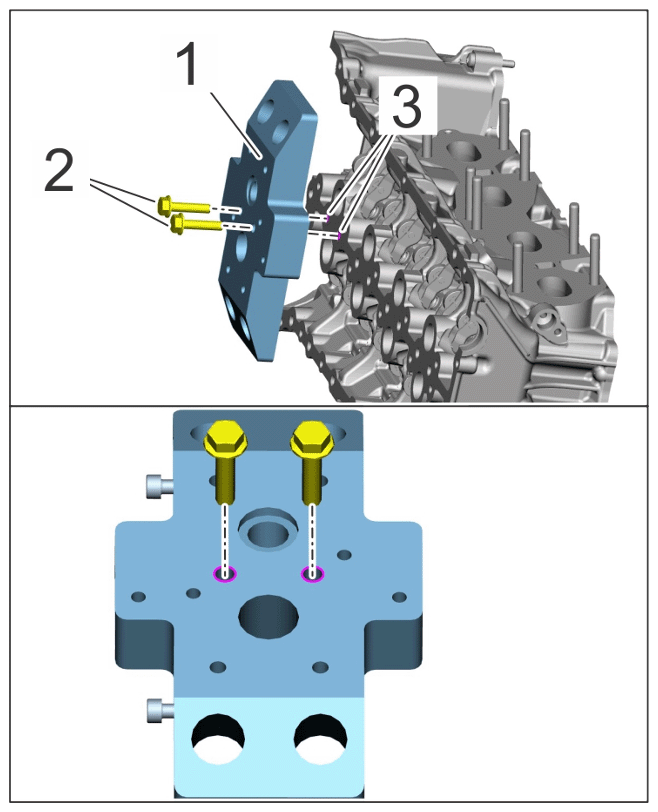

The guide plate VAS 5161A/38 must be modified for cylinders 4 and cylinder 8.

Screw two M8 bolts into the VAS 5161A/38 guide plate as shown in the illustration.

The screws must project by max. 5 mm  at the bottom.

The projection of the screws is fitted at the oil ducts.

The next steps are described in the Workservice information.

The screws in the guide plate VAS 5161A/38 can remain fitted for working on the other cylinders.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Accessory for VAS5161A/38

Information

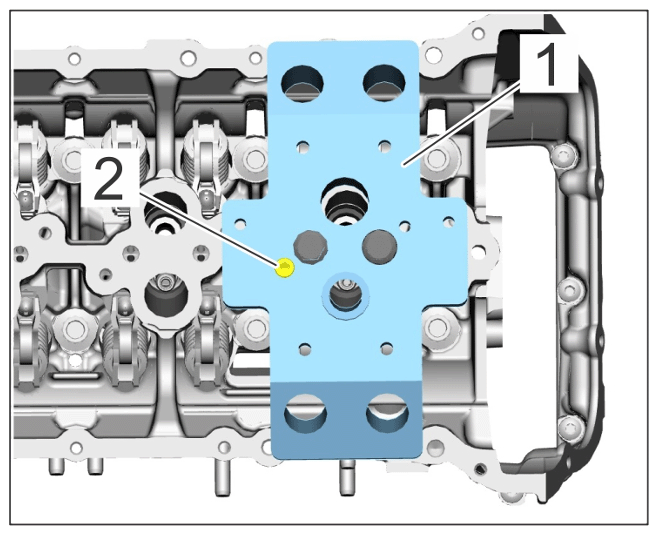

On cylinders 4 and 8, the guide plate VAS 5161A/38 can -1-  only be secured -2-  to the cylinder head with a screw.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

VAS 5161A/38

Information

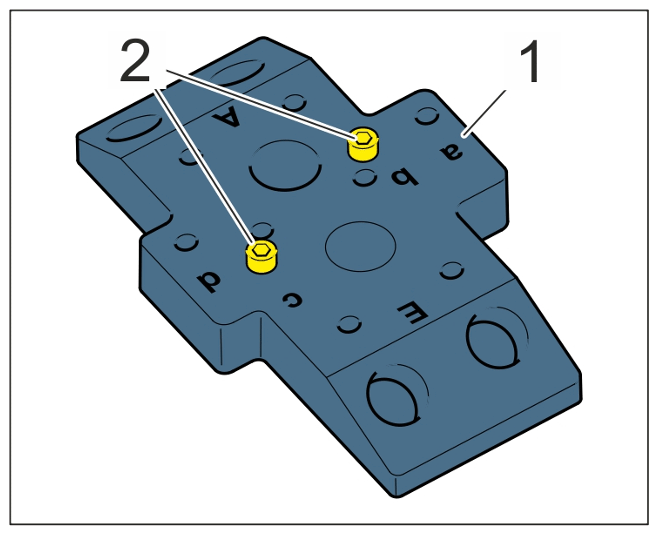

In the > VAS 5161A/38 - guide plate-1-  there are four bores -a, b, c, d-  for mounting on the cylinder head. Depending on the installation situation, observe the use of the bores and secure the > VAS 5161A/38 - guide plate-1-  with the supplied M6 x 40 bolts -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide plate VAS 5161A/38 with screws

Information

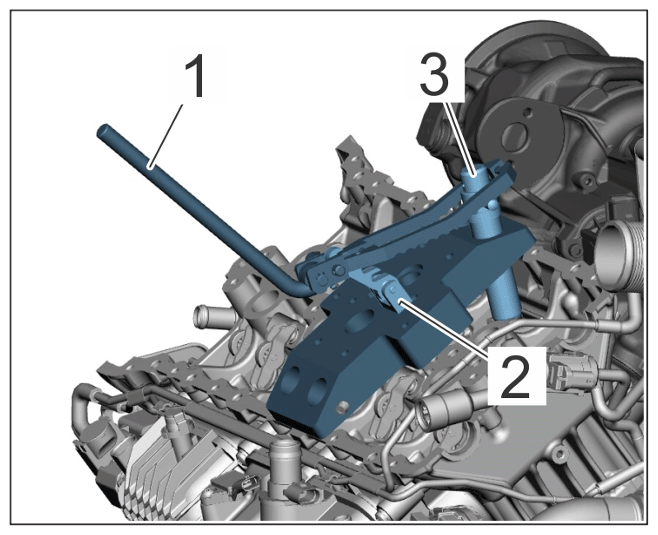

For the exhaust side valve, attach the > VAS 5161A - valve keeper  tool as shown.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Valve springs outlet side

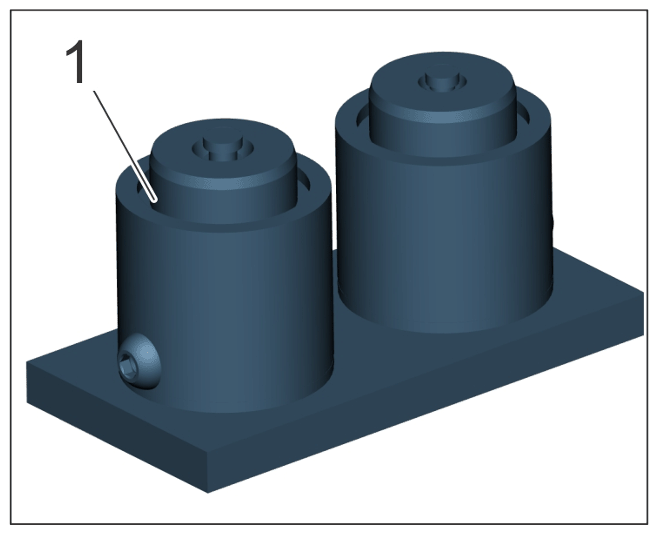

1. If the valve keys were removed from the assembly cartridge, they must first be inserted into the insertion device VAS 5161/18 -1-  from the tool kit > VAS 5161A - Removal and installation device for valve keys  .
   1. 1.1 Insert valve keys into the insertion device VAS 5161/18  .
      1. 1.1.1 The large diameter of the valve keys must be facing upwards.
   2. 1.2 Press assembly cartridge VAS 5161/8  onto the valve keys from above and pick up the valve keys.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Insertion device VAS 5161/18
