Removing Guide And Tensioning Rails For Cylinder Bank 1

WARNING: This page is about a different variant/trim than selected.
  1. Remove guide and tensioning rails -1 and 2-  .
    1. 1.1 Remove timing chain.
    2. 1.2 Remove guide rail -1-  .
      1. 1.2.1 Pull guide rail -1-  off the collar axle -3-  .
    3. 1.3 Remove tensioning rail -2-  .
      1. 1.3.1 Pull tensioning rail -2-  off the collar axle -4 -  .

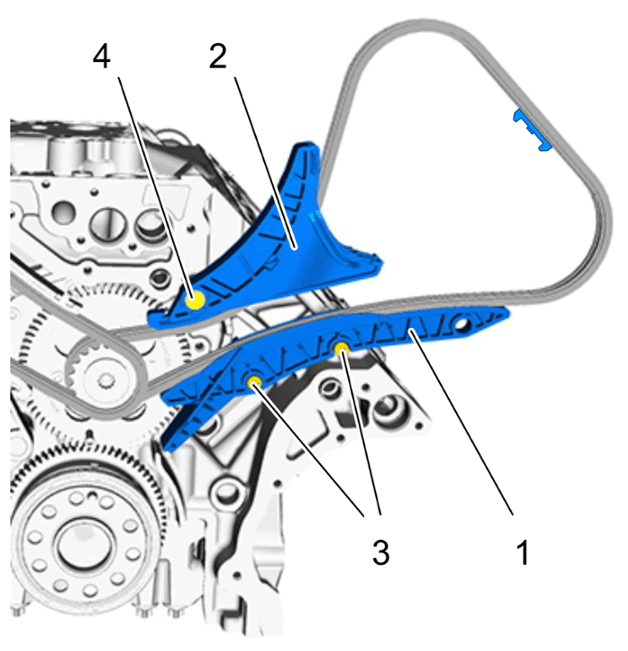

      G15824544Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Guide and tensioning rails for cylinders 1 to 4
