Installing Guide And Tensioning Rails For Cylinder Bank 2

Information

Check length of timing chains:

• The timing chains have different lengths.
• Bank 1: 122 links
• Bank 2: 124 links

1. Installation is performed in reverse order. Pay particular attention to the following:
   1. 1.1 Fit long timing chain.
   2. 1.2 Fit and tighten screws -3-  .

      > Tightening torque 9 Nm (6.5 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

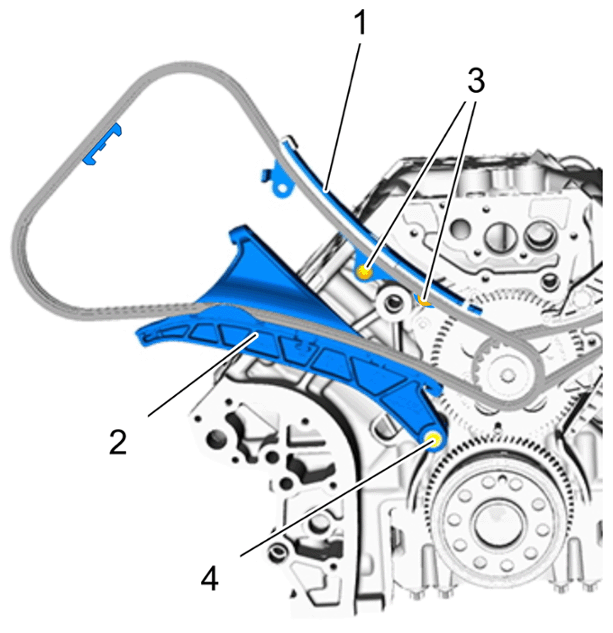

      Guide and tensioning rails for cylinders 5 to 8
