Installing Guide And Tensioning Rails For Cylinder Bank 1

Information

Check length of timing chains:

• The timing chains have different lengths.
• Bank 1: 122 links
• Bank 2: 124 links

1. Installation is performed in reverse order. Pay particular attention to the following:
   1. 1.1 Fit short timing chain.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

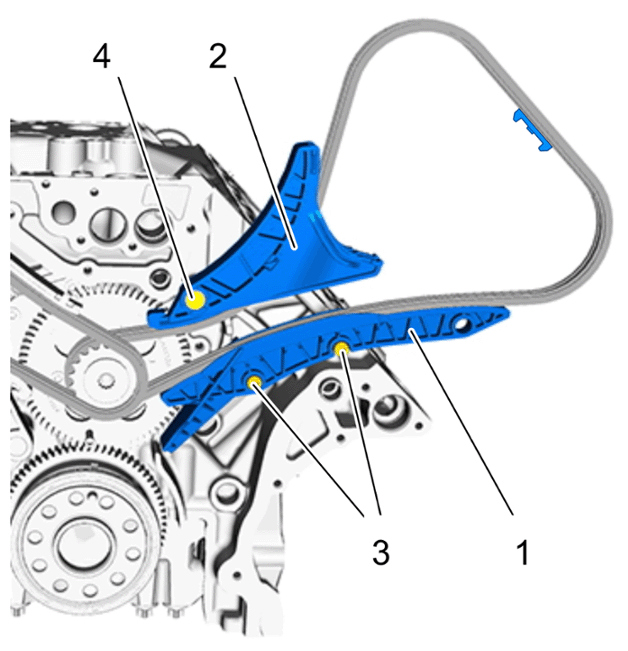

      Guide and tensioning rails for cylinders 1 to 4
