Removing Camshaft Controller Actuator

WARNING: This page is about a different variant/trim than selected.

Information

The procedure for removing and installing is described for one actuator as an example. The removal and installation procedure for the other actuators is practically identical.

  1. Remove camshaft controller actuator -1-  .
    1. 1.1 Release and disconnect electric plug connection -2-  .
    2. 1.2 Unscrew screws -3-  .
    3. 1.3 Remove camshaft controller actuator -1-  .

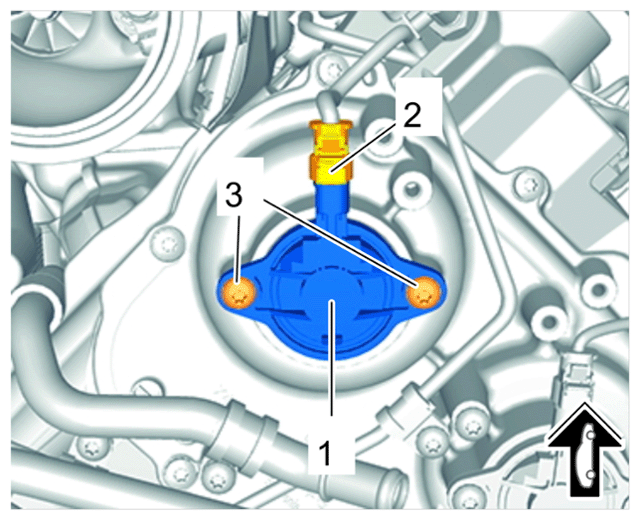

    G15824541Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Camshaft controller actuator
