Installing Camshaft Controller Actuator
WARNING: This page is about a different variant/trim than selected.
- Install camshaft controller actuator -1-
.
- 1.1 Carefully insert camshaft controller actuator -1-
.
- 1.1.1 Check that the seal is fitted correctly.
- 1.2 Fit and tighten screws -3-
.
> Tightening torque 9 Nm (6.5 ftlb.)
- 1.3 Connect and lock electric plug connection -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

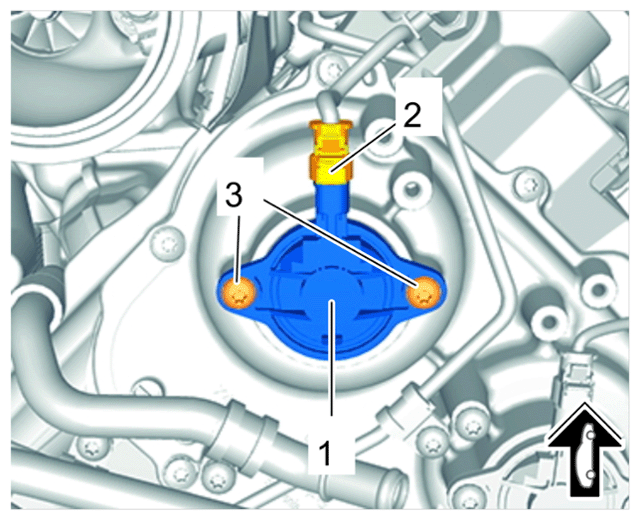

Camshaft controller actuator
