Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Install supply line.

    > 203819 REMOVING AND INSTALLING SUPPLY LINE

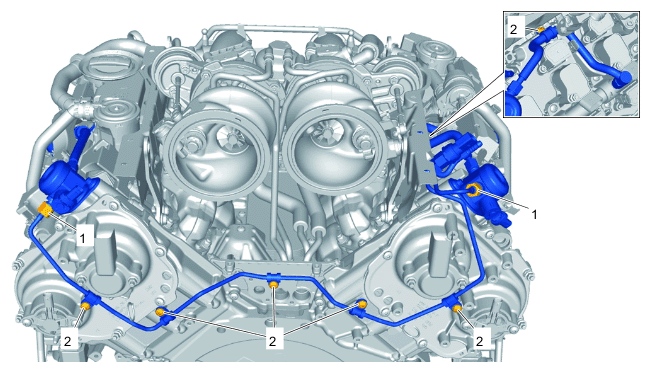

    G15824539Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Supply line

  2. Removing shield.

    > 261219 REMOVING AND INSTALLING HEAT SHIELD ON CATALYTIC CONVERTER (V8 BITURBO)

    > 261219 REMOVING AND INSTALLING UPPER CENTRE CATALYTIC CONVERTER HEAT SHIELD (V8 BITURBO)

  3. Installing motor.

    > 100119 REMOVING AND INSTALLING ENGINE
