Removing Chain Housing Cover

WARNING: This page is about a different variant/trim than selected.

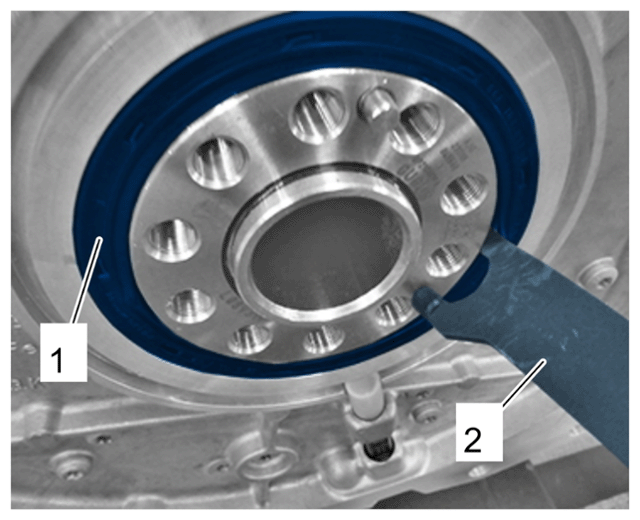

  1. Remove crankshaft-flywheel sealing ring -1-  using > T20143 - extractor tool-2-  .

    > 135955 REPLACING CRANKSHAFT-FLYWHEEL SEALING RING

    G15824526Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Crankshaft/flywheel sealing ring

  2. Remove chain housing cover.
    1. 2.1 Loosen and unscrew screws in the sequence -19 to 1-  .
    2. 2.2 Fit screws at the screw points -arrows-  and screw in uniformly by half a turn each in order to press off the chain housing cover.
    3. 2.3 Remove chain housing cover.

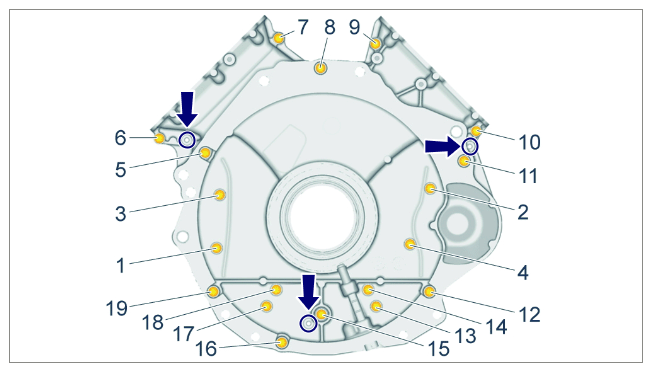

    Fig 1: Chain Housing Cover Screws Loosening Sequence
    G15824527Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Chain housing cover
