Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Remove the engine.
> 100119 REMOVING AND INSTALLING ENGINE
Secure engine to assembly support.
> WM, 100113 SECURING ENGINE ON ASSEMBLY SUPPORT (V8 BITURBO)
Remove the relevant cylinder head cover.
The camshafts are integrated in the cylinder head covers. See Workservice information!

> WM, 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER

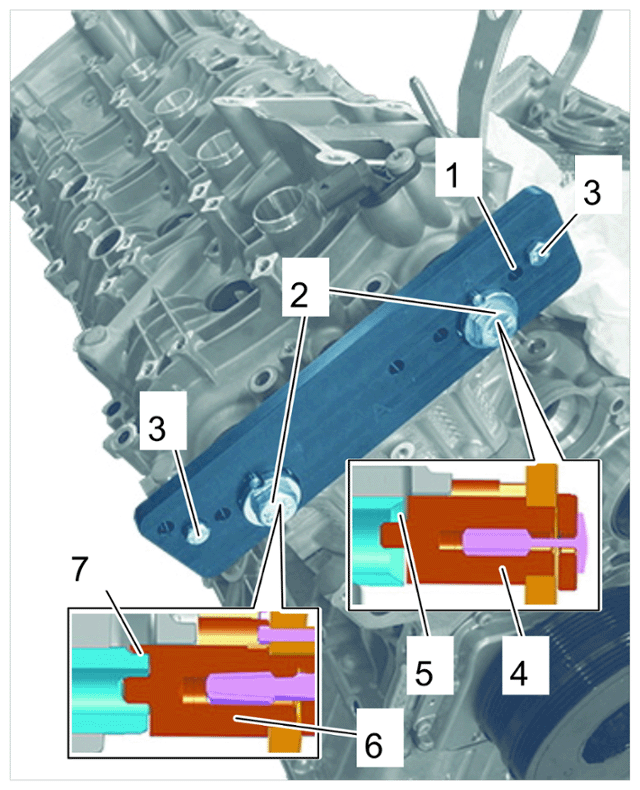

> T40331 - Camshaft clamp-1- can now be removed.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Camshaft clamps
