Removing Drive Belt For Generator

WARNING: This page is about a different variant/trim than selected.

Information

The belt tensioner must not be turned as far as the stop due to risk of damage to the dust boot.

  1. Relieve tension on drive belt for generator.
    1. 1.1 Position Torx wrench T55 -1-  on the belt tensioner -2-  , turn it anti-clockwise and remove the drive belt.
    2. 1.2 Carefully allow the belt tensioner -2-  to turn back to its original position.

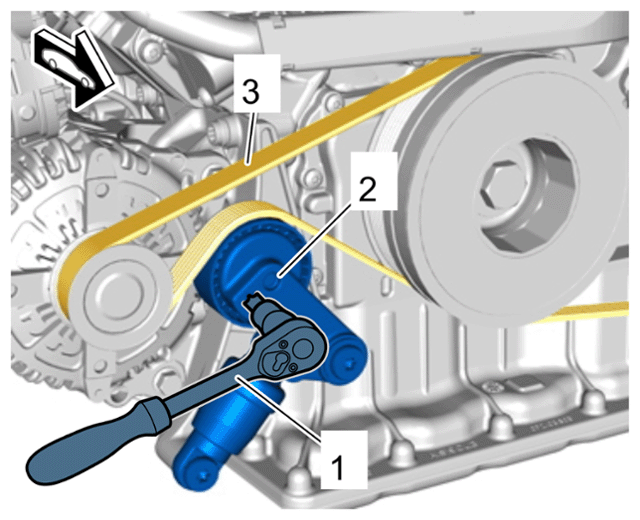

    G15824516Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Belt tensioner for generator

  2. Guide out drive belt for generator -3-  and remove it.
  3. Check pulleys for damage.
