Removing Crankshaft Vibration Damper

1. 1.1 Turn the crankshaft so that brace T40330/1 -1-  can be fitted.
2. 1.2 Fit brace T40330/1 -1-  on the crankshaft vibration damper -2-  .
3. 1.3 Fit spacer sleeve T40330/3 -3-  underneath and screw in and tighten screw -4-  > Tightening torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

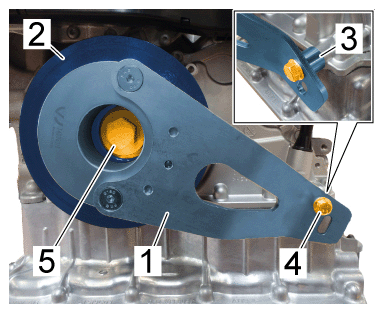

Brace

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on crankshaft vibration damper

1. 3.1 Unscrew and remove screw -4-  .
2. 3.2 Remove spacer sleeve T40330/3 -3-  and brace T40330/1 -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brace

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crankshaft vibration damper
