Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Remove cooling fan housing (radiator frame).
> 192019 REMOVING AND INSTALLING COOLING FAN HOUSING (RADIATOR FRAME)
Remove ATF cooling line (front section).
> WM, 386219 REMOVING AND INSTALLING ATF COOLING LINE (FRONT SECTION)
Remove drive belt for generator.
> 137819 REMOVING AND INSTALLING DRIVE BELT (V8 BITURBO)
Remove belt tensioner for air-conditioning compressor.
> 137319 REMOVING AND INSTALLING BELT TENSIONER (AIR-CONDITIONING COMPRESSOR) (V8 BITURBO)

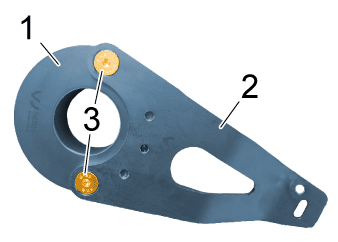

Prepare > T40330 - counterhold tool.
1. 5.1 Fit adapter T40330/5 -1- on brace T40330/1 -2- .
2. 5.2 Screw in and tighten screws -3- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Counter-hold tool
