Subsequent Work

WARNING: This page is about a different variant/trim than selected.

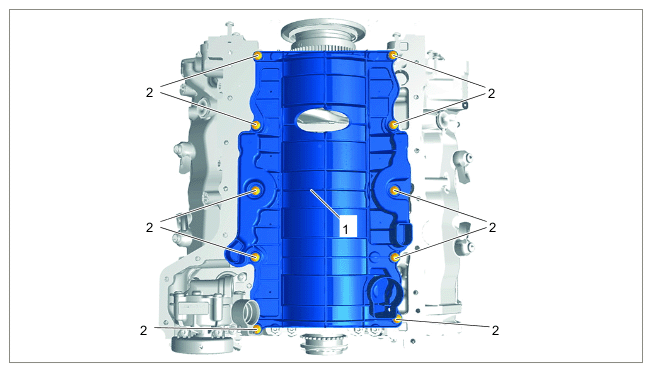

  1. Install oil windage tray -1-  .
    1. 1.1 Insert oil windage tray -1-  .
    2. 1.2 Fit and tighten screws -2-  .
    G15824465Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil plate

  2. Install oil guide housing.

    > 174619 REMOVING AND INSTALLING OIL GUIDE HOUSING (V8 BITURBO)

  3. Install the relevant cylinder head.

    > WM, 157019 REMOVING AND INSTALLING CYLINDER HEAD

  4. Install the engine.

    > 100119 REMOVING AND INSTALLING ENGINE

  5. Fill in engine oil.

    > 170117 DRAINING AND FILLING IN ENGINE OIL
