Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Remove the engine.
> 100119 REMOVING AND INSTALLING ENGINE
Secure engine to assembly support.
> Securing engine on assembly support (V8 biturbo)
Drain engine oil.
> 170117 DRAINING AND FILLING IN ENGINE OIL
Remove the relevant cylinder head.
> WM, 157019 REMOVING AND INSTALLING CYLINDER HEAD
Remove oil guide housing.
> 174619 REMOVING AND INSTALLING OIL GUIDE HOUSING (V8 BITURBO)
Remove oil windage tray -1- .

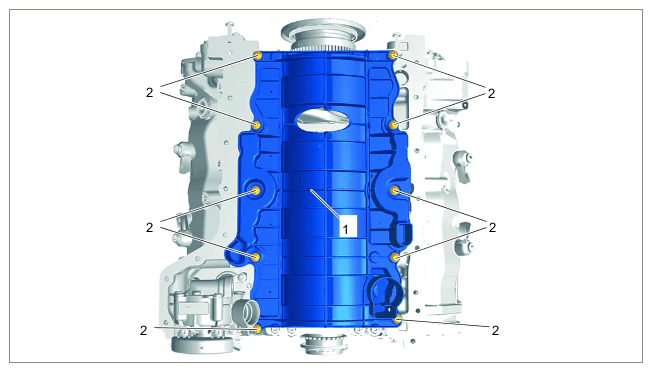

1. 6.1 Unscrew screws -2- and remove oil windage tray -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil plate
